ST-35
35T STRETCH FORMER
- 16.1T Weight
ABOUT ST-35

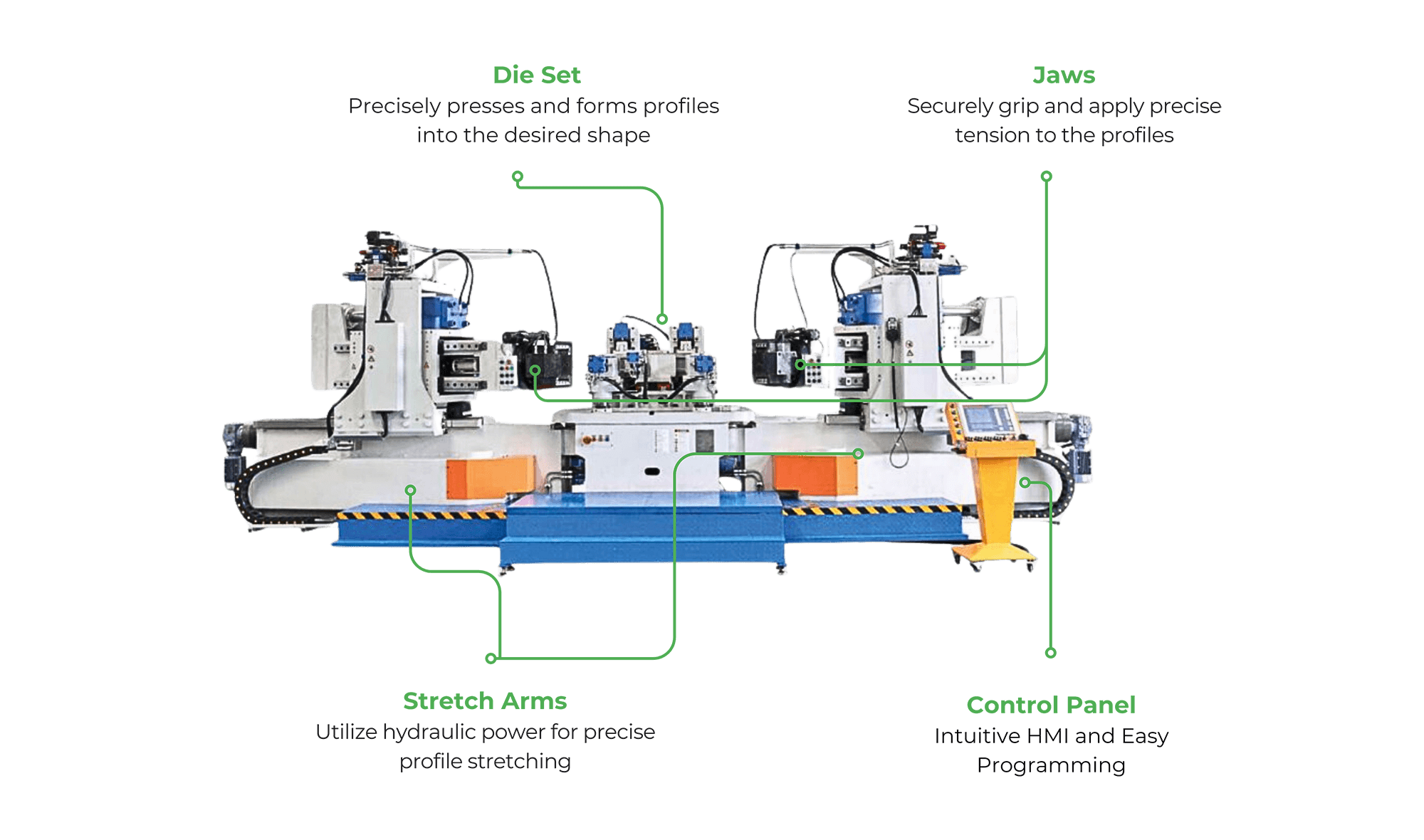

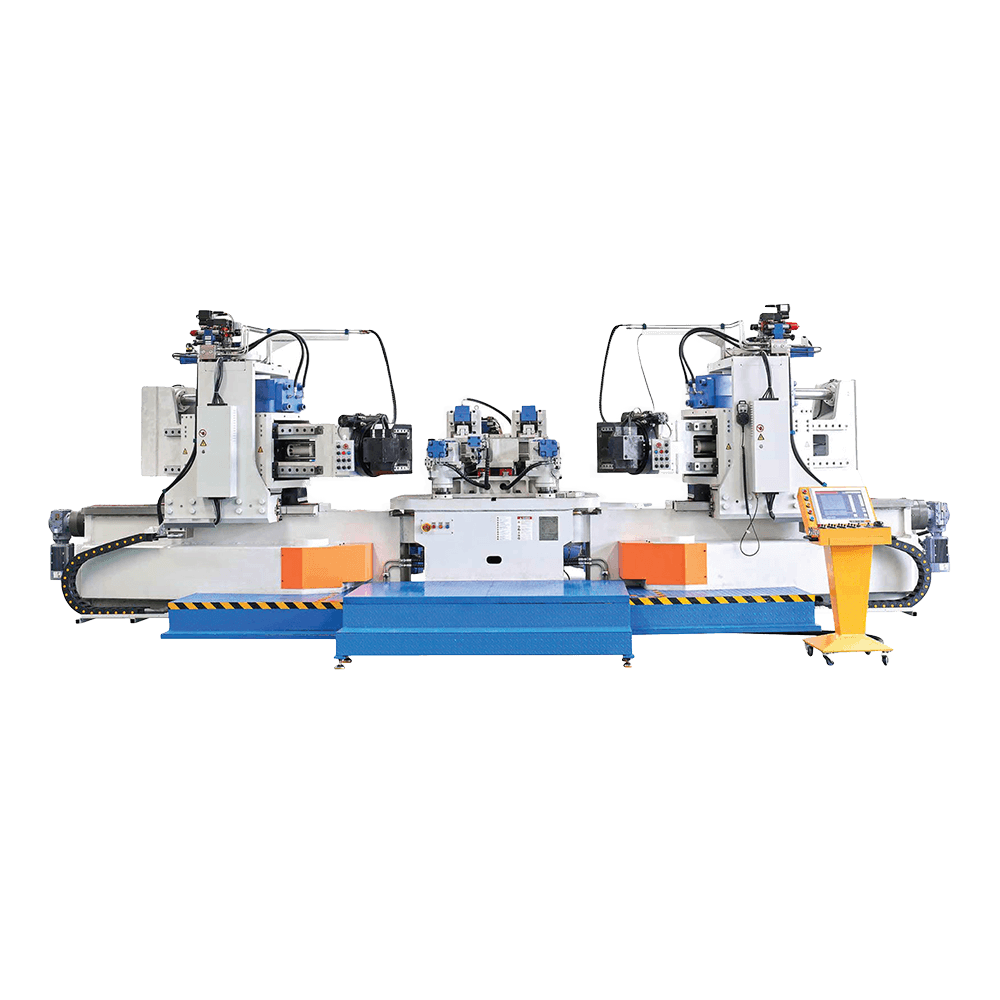

35T STRETCH FORMER - ST-35
Machine Technical Spec
- Stretching power: 350kN
- Max distance between jaws: 5200mm
- Mould platform height: 970mm
- Mould platform dimensions: 2050x1280mm
- Stretch cylinder swing angle: ±30°
- Swing arm angle: 10° Forward, 90° Backward
- Swing arm precision: ±0.1°
- Minimum bending radius: 240mm
- Servo power: 37kW
- Weight: 16.1T
