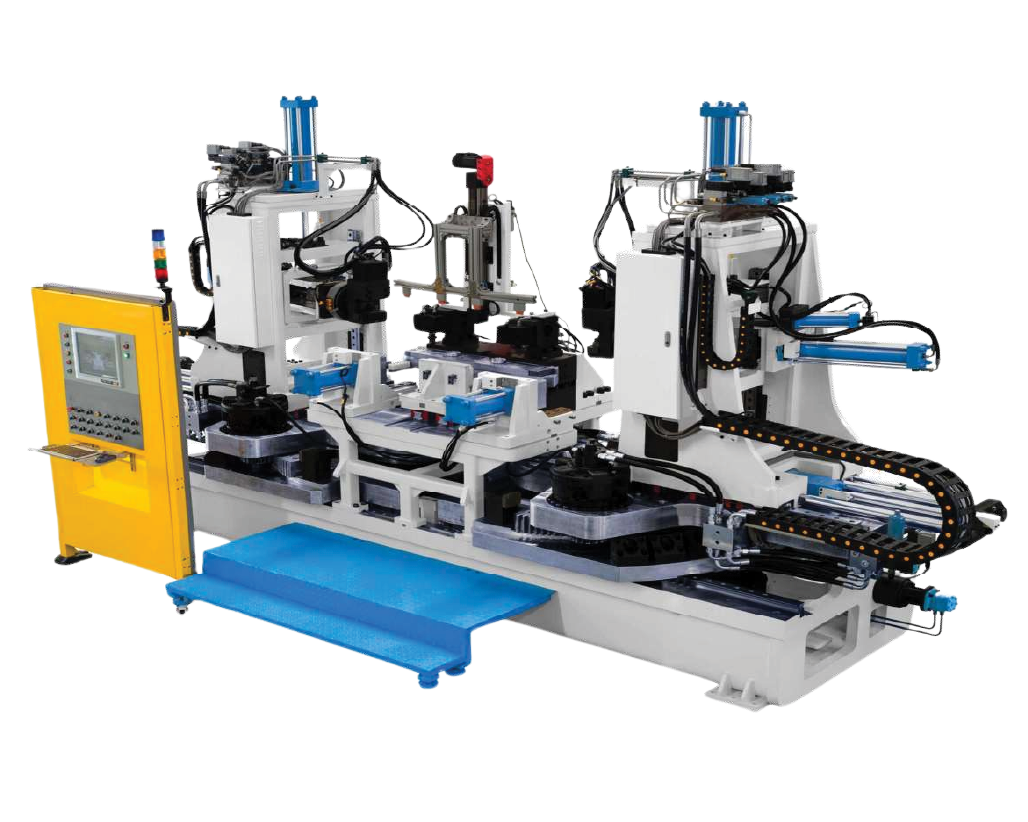

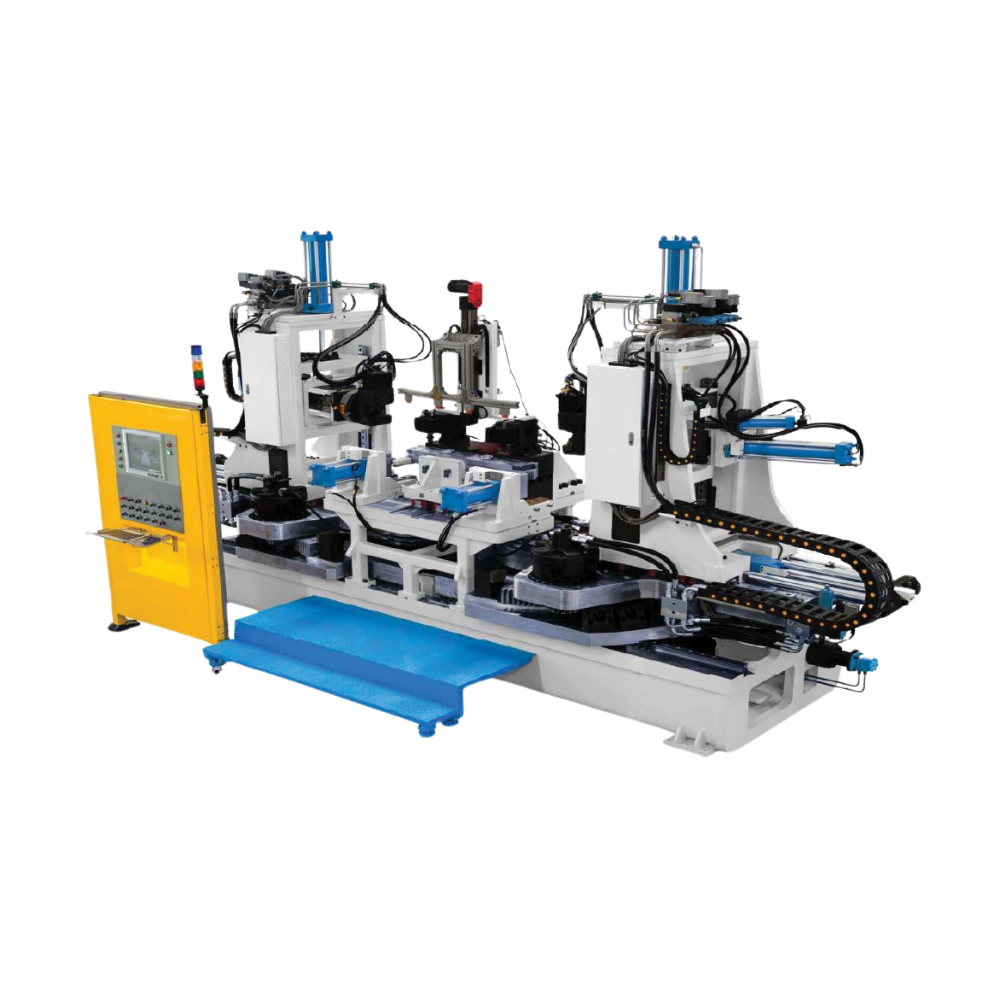

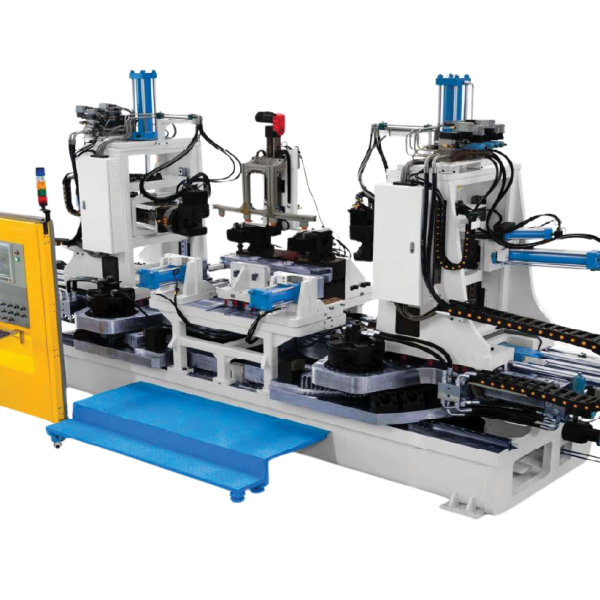

3D STRETCH BENDING MACHINE
ABOUT
3D STRETCH BENDING MACHINE -
Machine Description
- Best Possible and Unique bending and stretch forming for Structural Applications
- Lowest Tool Cost Compared to Other Machines
- Easy to Operate with Minimal Training
Machine Technical Spec
- Forming Method: 3D stretch bending machine
- Cycle Time: 50s/pcs
- Qualification Rate: Over 98%
- Quality: Contour fitness<± 1mm， Flatness<± 1mm Depression<0.5mm
- Positioning Hole: Drilling on the workpiece
- Clamping Length: Clamping segment: 60mm long, clamping mark: 0.3-0.5mm deep, cutting required
- Feeding Length: Expanded length+120
- Checking Fixture: Customer Provided
- Material: T4 or T0 within 10days, as per drawing
- Material Aging: T4 extruded profile-> stretch bending-> aging to T6-> cutting, drilling and milling
- Machine Name: 20T 3D stretch bending machine
- Time of Delivery: 30 working days around
- Tooling: 30 working days around
