S10T

    2D CNC PROFILE BENDING MACHINE

    • 2D Version
    • 1300Kg Weight
    • 2.2KW Hydraulic drive

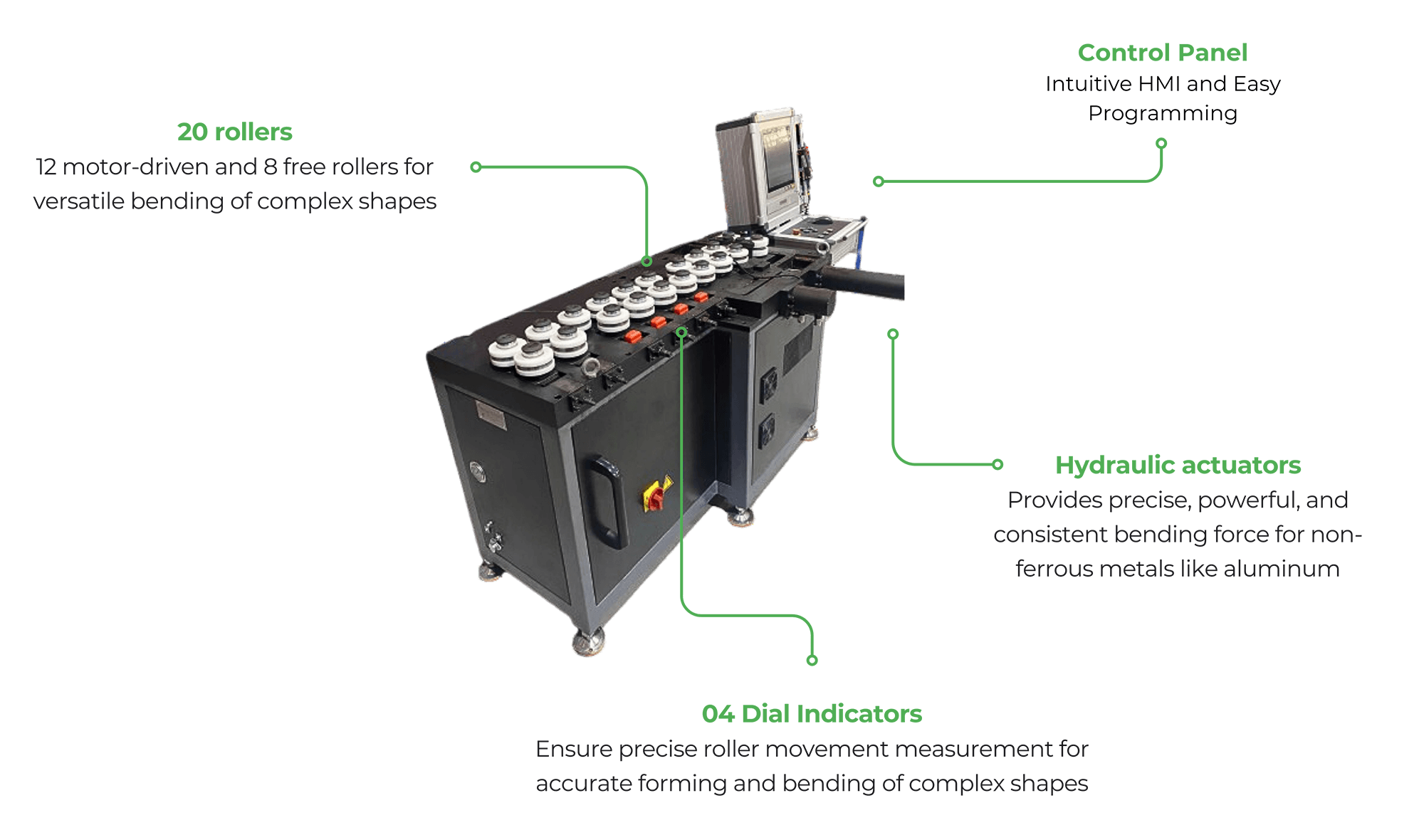

    image-features

    ABOUT S10T

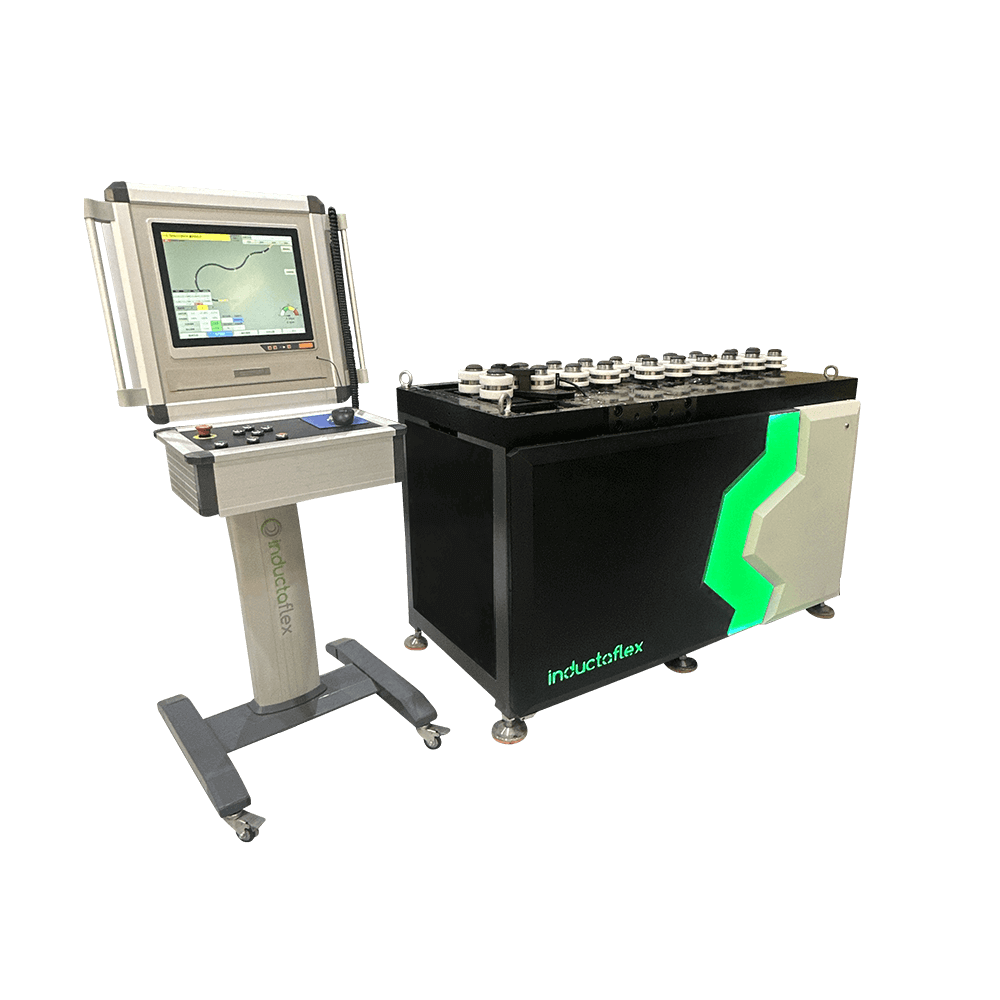

    2D CNC PROFILE BENDING MACHINE - S10T

    Machine Description
    • Rapid reverse bender

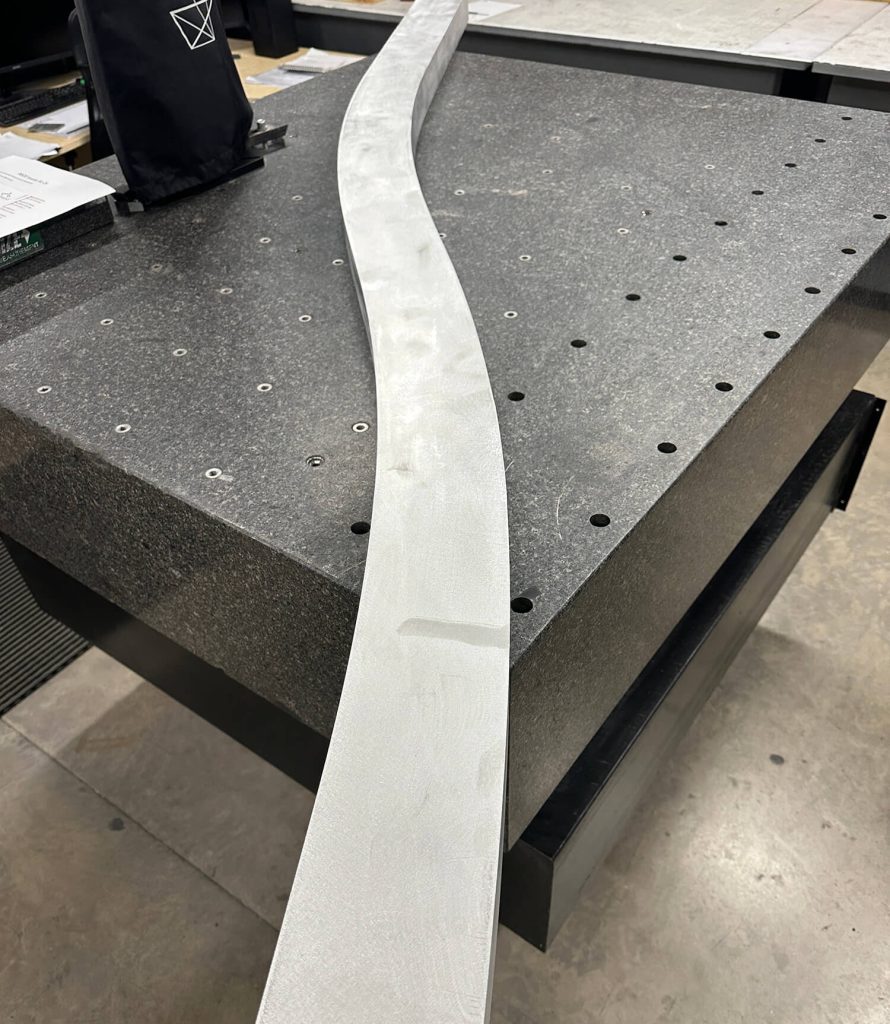

    • S – Bends
    • Tube and Pipe Bending
    • Intelligent CNC
    • Self-Programming
    • X-axis Bending force: 10T
    • Y/Z-axis Resolution: 0.01mm
    • 3 Individually driven rollers, Infinitely variable: 1–20rpm
    • Tool holder Ø: 40mm
    • Rollers Height: 80mm
    • Torque: 1460N.m
    • Travel (controlled Y-axis): 260mm
    • Hydraulic drive: 2.2KW
    • Roller drive, electrical: 3.7KW
    • Power supply: 3P 415V 50Hz
    • Weight: 1300Kg
    • L x W x H: 1738 x 1285 x 1162

    Standard features

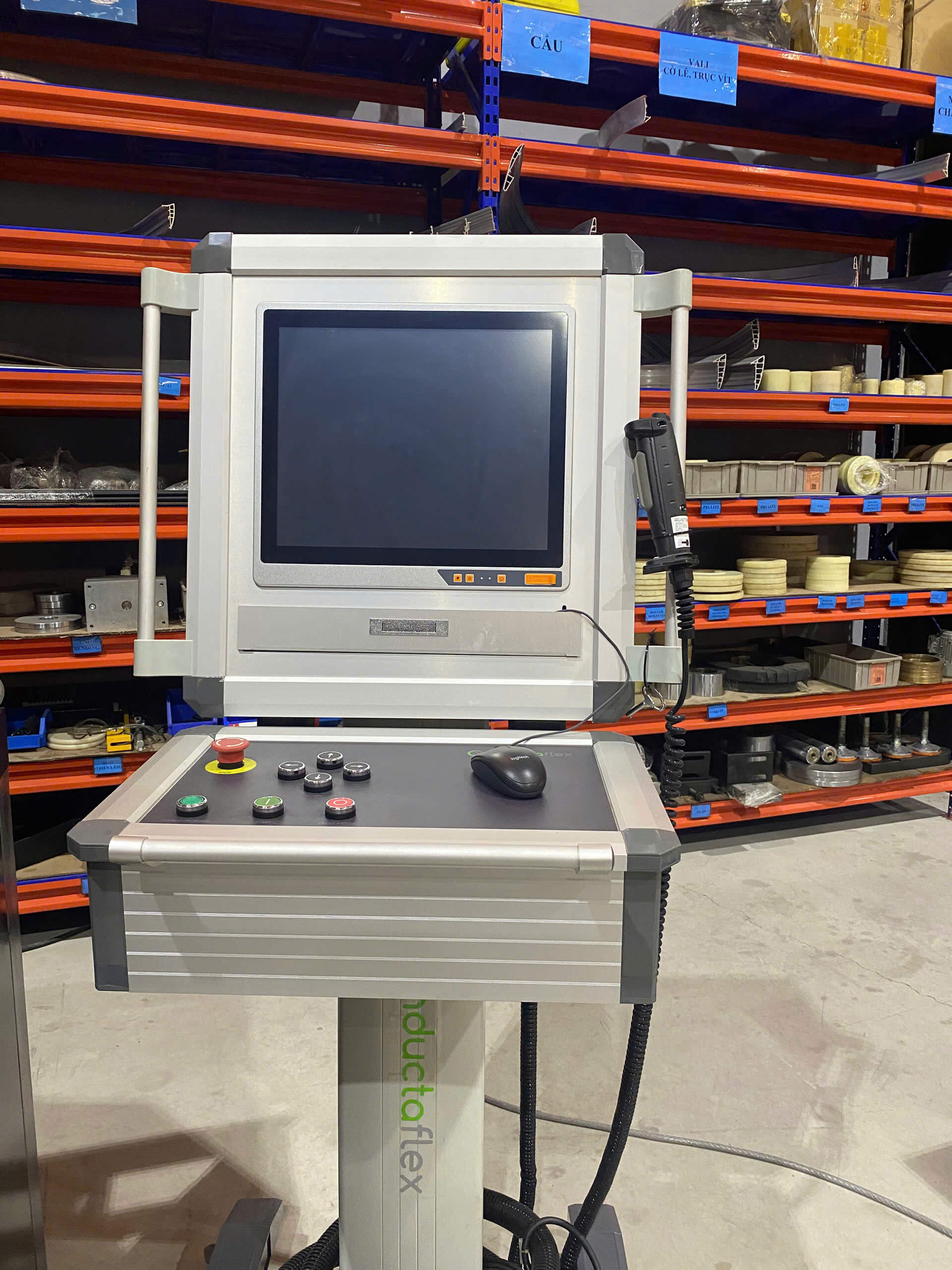

    Intelligent CNC

    • It allows you to upload drawings directly into the system, supporting file formats like .dxf, .dwg.
    • The CNC system’s advanced algorithms and automation enable precise and error-free bending, ensuring seamless execution of complex profiles.

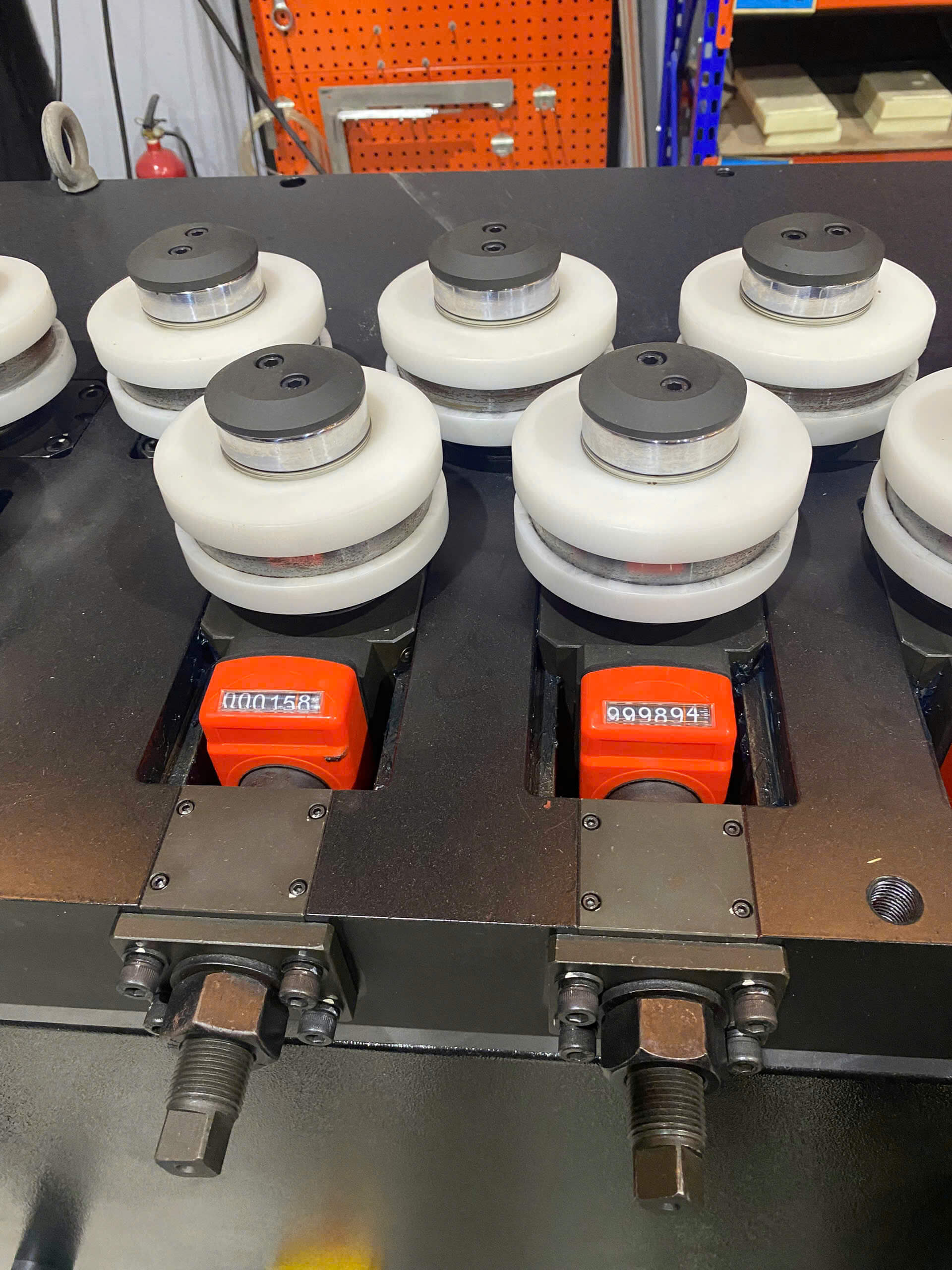

    ROTATION COUNTER

    • Monitors and displays the exact number of shaft rotations during operation
    • Helps achieve desired curvature accurately and consistently.

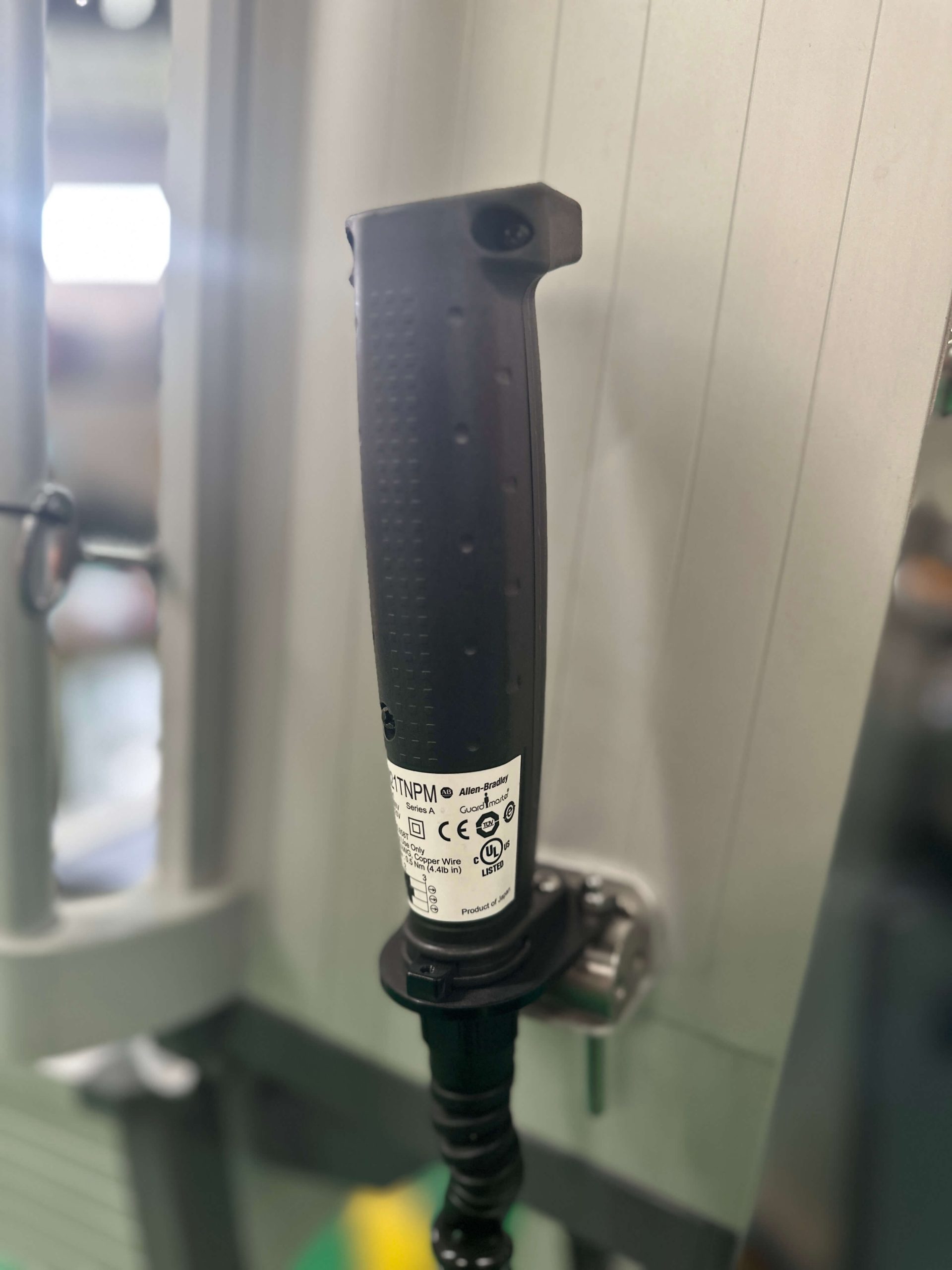

    Safety handle control

    • Ensure that the machine operates only when the operator performs
    • It prevents the machine from starting unintentionally, such as when the operator accidentally touches buttons or control levers.
    • This handle may also integrate with other sensors to immediately stop the machine if any dangerous or incorrect operation is detected

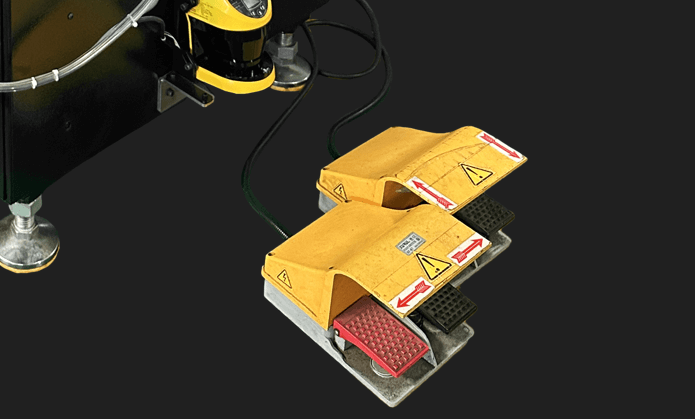

    PEDAL

    • Control horizontal/vertical or up/down movement
    • Safety for operator

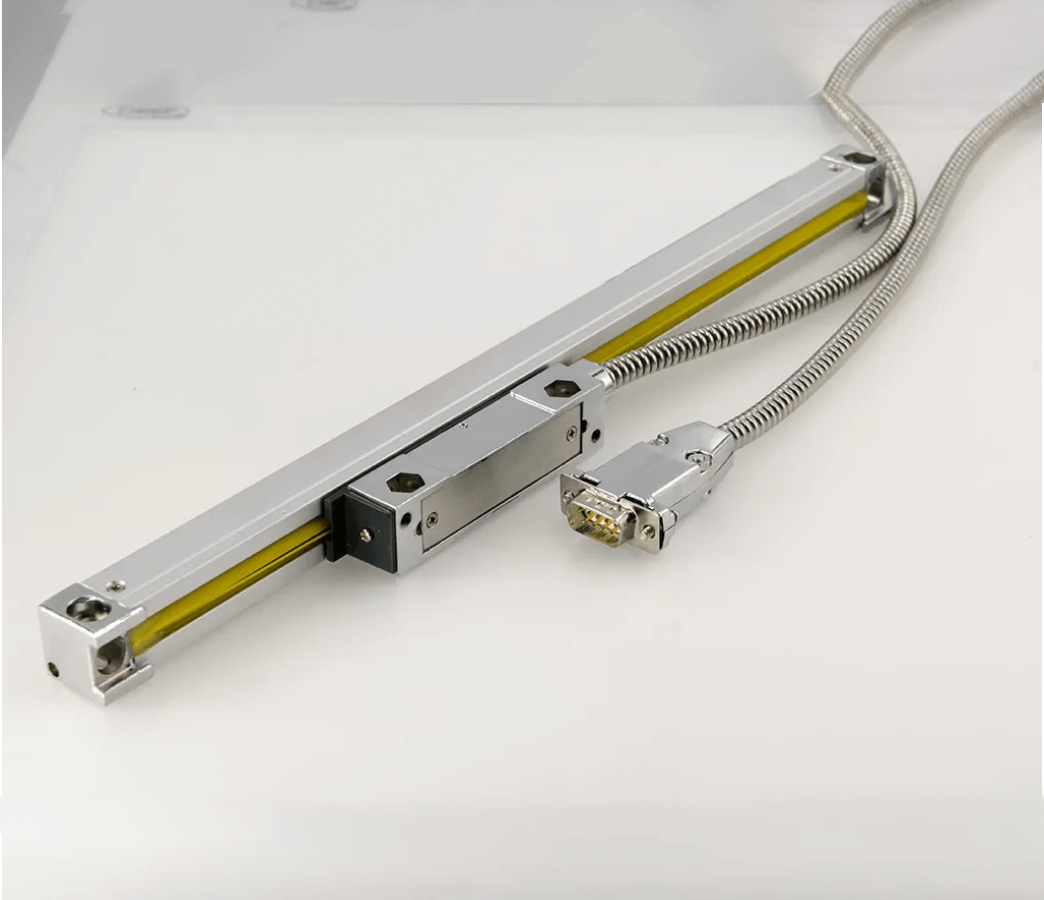

    Linear encoder

    • Position Measurement
    • Improving Precision
    • Feedback Signal

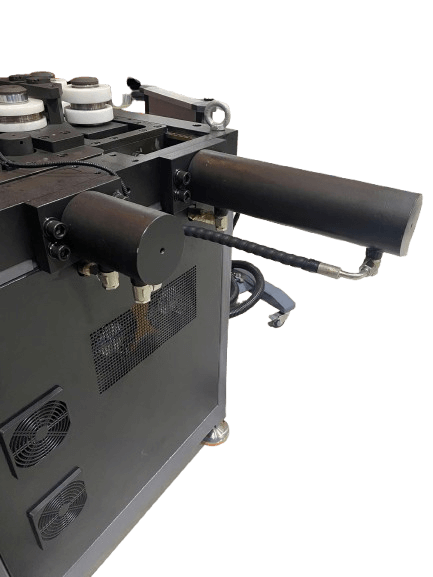

    Hydraulic shaft

    • The hydraulic shaft transfers power to the rollers, controlling bending force.
    • Enables precise adjustment of bending force on the rollers.

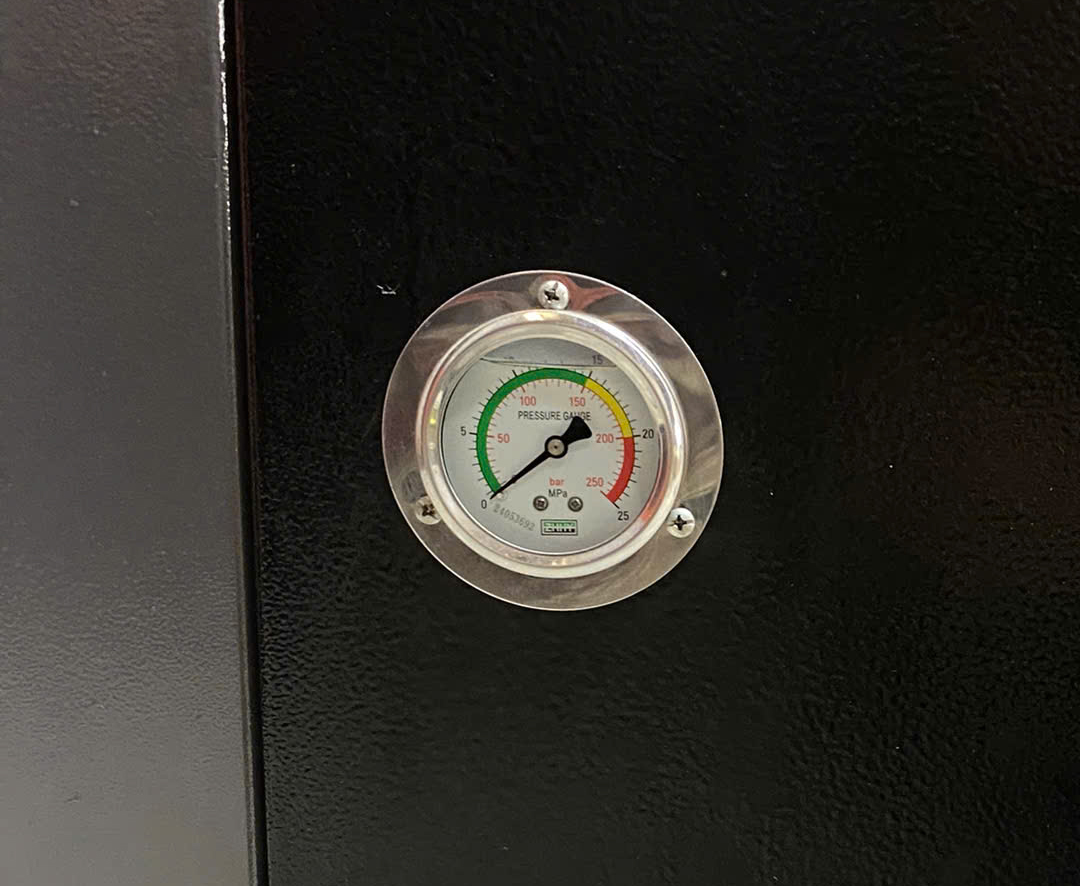

    hydraulic pressure gauge

    • Monitor and maintain stable pressure in the hydraulic system.

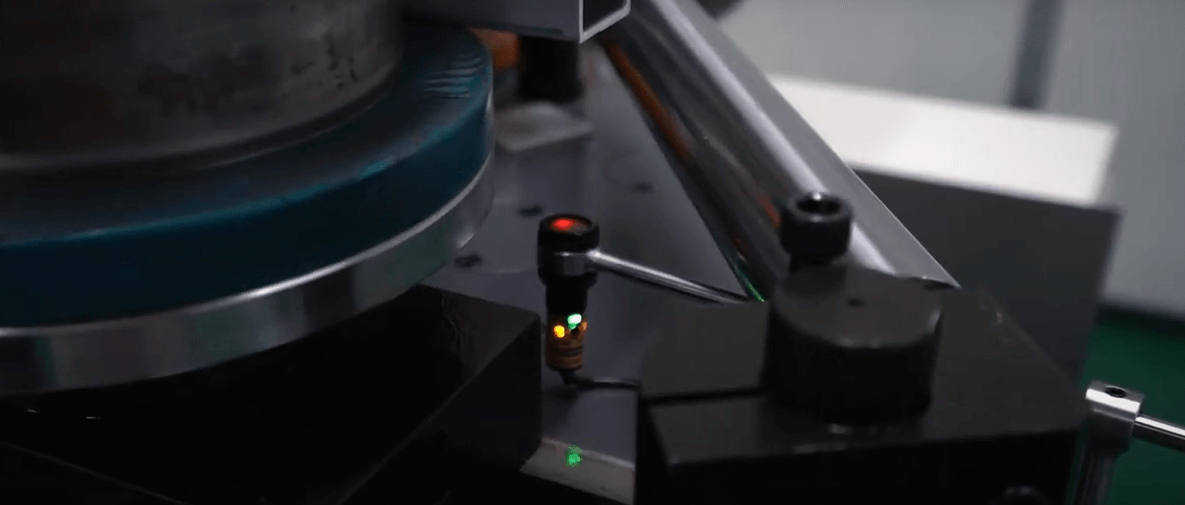

    SENSOR

    • Sensors help identify the material’s position.

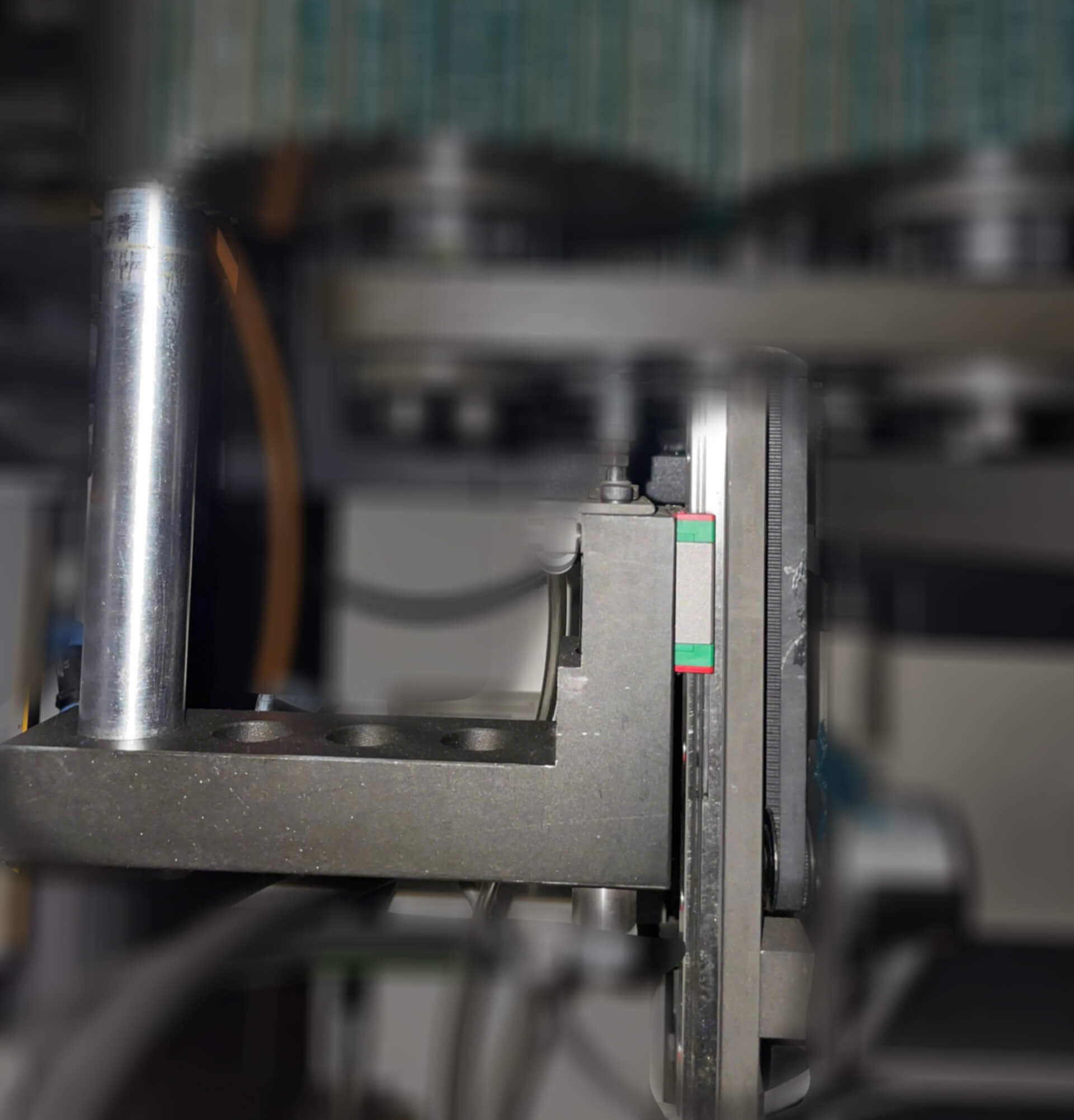

    ENCODER

    • Accurate Position Tracking
    • Bend Angle Control
    • Ensures Consistency
    • Automation Integration

    Optional extras

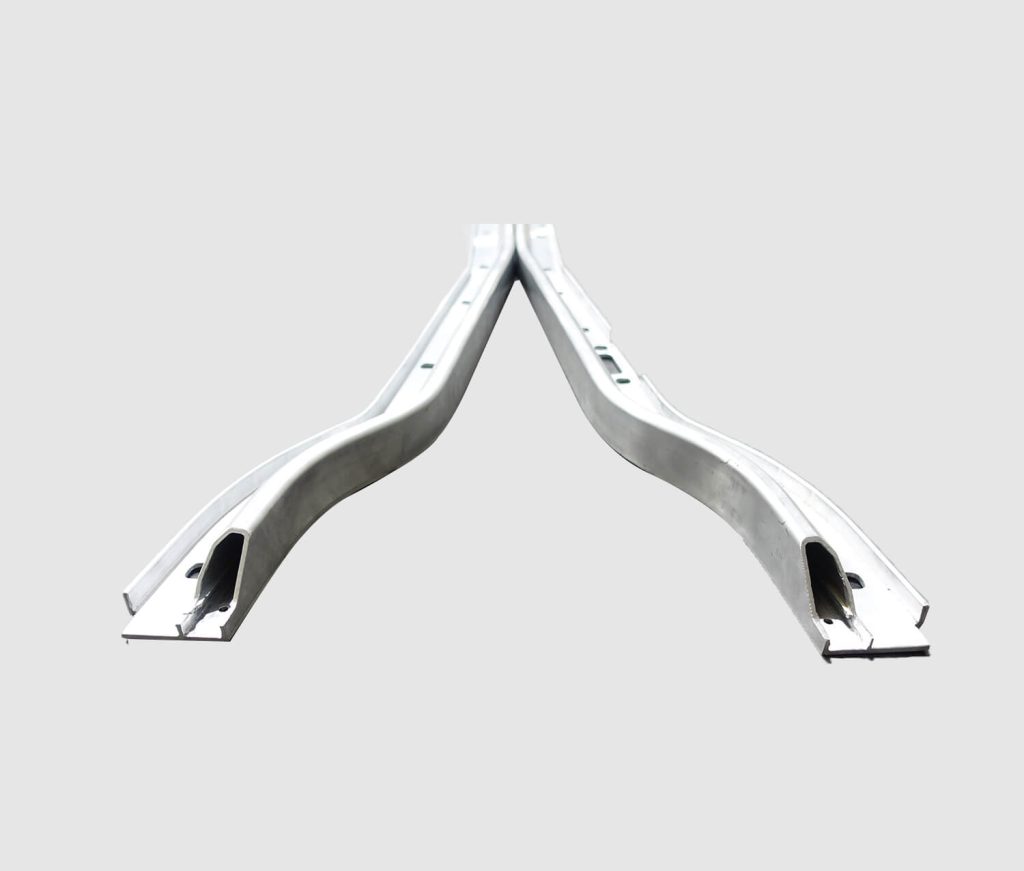

    SUITABLE MARKETS / BENDING ABILITY

    • High speed bending of reverse bends

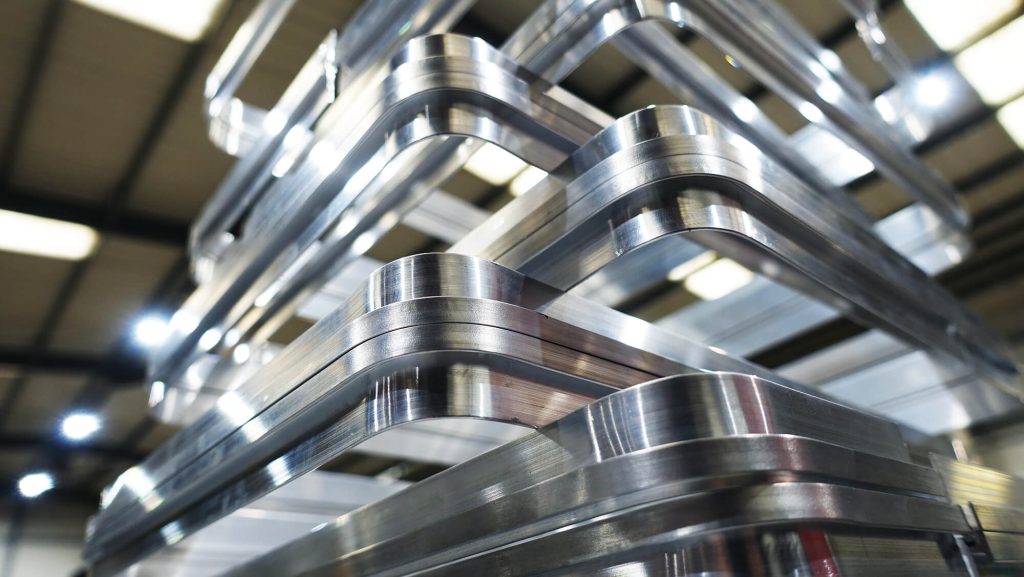

    • Bending of case frames for mass production
    • Rail carriage connecting parts
    • Violin Cases

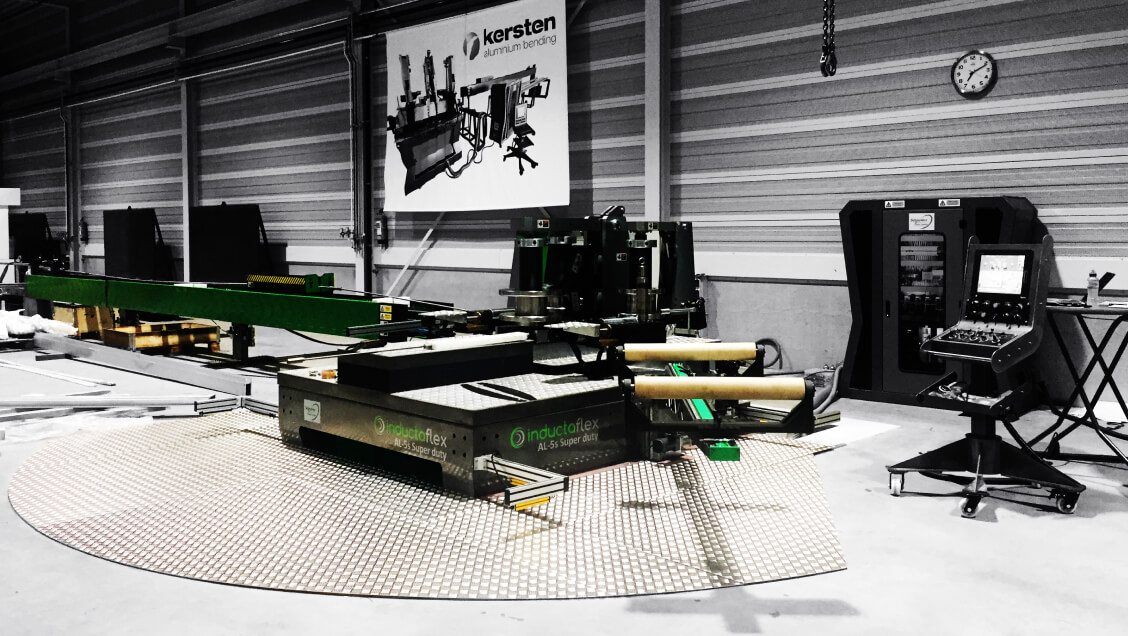

    INDUCTAFLEX ROLLER INFORMATION



    AL-15 H

    AL-25 H

    AL-40 H

    L-70 H

    2D / 3D versions

    2D and 3D

    2D and 3D

    2D and 3D

    2D and 3D

    X-axis

    Bending force

    X-axis

    15T

    25T

    40T

    70T

    Drive of X-axis

    Hybrid, servo hydraulic, clean, low noise – 70% energy savings

    Hybrid, servo hydraulic, clean, low noise – 70% energy savings

    Hybrid, servo hydraulic, clean, low noise – 70% energy savings

    Hybrid, servo hydraulic, clean, low noise – 70% energy savings

    Stroke of Z/U-axis

    150mm

    150mm

    150mm

    150mm

    Maximum part width

    200

    300

    300

    300

    Positioning

    accuracy of

    the X-axis

    0.01mm

    0.01mm

    0.01mm

    0.01mm

    Y-axis

    3 individual driven

    rollers speed

    1-14rpm

    1-14rpm

    1-10rpm

    1-10rpm

    Front shaft

    distance

    (roller spacing)

    258-518mm

    362-762mm

    410-1510mm

    800-1600mm

    Shaft diameter

    80mm

    105mm

    105mm

    130mm

    Shaft height

    250mm

    330mm

    450mm

    600mm

    Total torque

    2470Nm

    4847Nm

    7500Nm

    11000Nm

    Max Torque per shaft

    823Nm

    1615Nm

    3500Nm

    45000Nm

    Yaxis travel distance

    255mm

    400mm

    500mm

    650mm

    Hydraulic drive

    3.7kW

    5.5kW

    5.5kW

    5.5kW

    Shaft drive;

    individually driven!

    Servo electric, clean, lownoise – 70% energy savings

    Servo electric, clean, lownoise – 70% energy savings

    Hybrid, servo hydraulic, clean, low noise – 70% energy saving

    Hybrid, servo hydraulic, clean, low noise – 70% energy saving

    Shaft supports

    Standard

    Standard

    Standard

    Standard,

    optional servo close

    Z-axis

    Z-axis

    Manual standard

    roller

    Manual standard

    roller

    Standard powered

    Standard powered

    Z axis powered

    option

    Electric 2000 kg

    Electric 4000 kg

    Electric 5000 kg

    Electric 7000 kg

    Control / Software:

    Machine control

    Inteligent CNC,

    reverse bending

    Inteligent CNC,

    reverse bending

    Inteligent CNC,

    reverse bending

    Inteligent CNC,

    reverse bending

    Operating system

    Windows

    Windows

    Windows

    Windows

    General technical data

    KW

    3kW

    4.4kW

    4.7kW

    12.3kW

    Power supply connection

    380V, 50Hz, 17A

    380V, 50Hz,20A

    380V, 50Hz,39A

    380V, 50Hz,50A

    Length / width / height

    1249x1134x1432mm

    2037x1300x2148mm

    2170x2075x1800mm

    2520x2475x2148mm

    Weight

    1800kg

    2600kg

    3000kg

    6000kg

    Transportability

    of the machine

    Pallet truck

    Fork truck

    Fork truck

    Crane

    Hydraulic oil volume

    100L

    180L

    240L

    320L

    Pro­le capacity

    Maximum pro­le siz

    80 x 80 x 3mm

    100x 100 x3 mm

    120x 120 x 3mm

    120x 120 x 3mm

    Minimum radius

    T x 5mm

    T x 5mm

    T x 5mm

    T x 5mm
