ABOUT RS-15

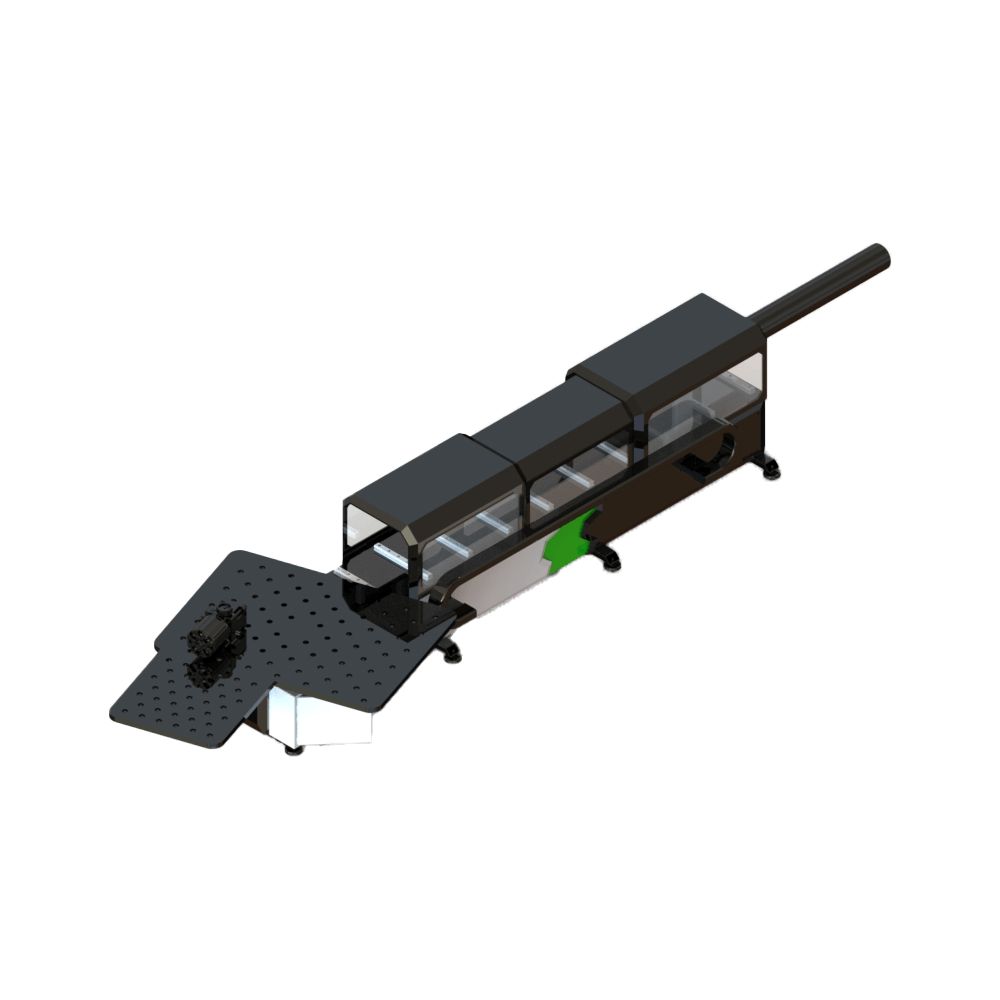

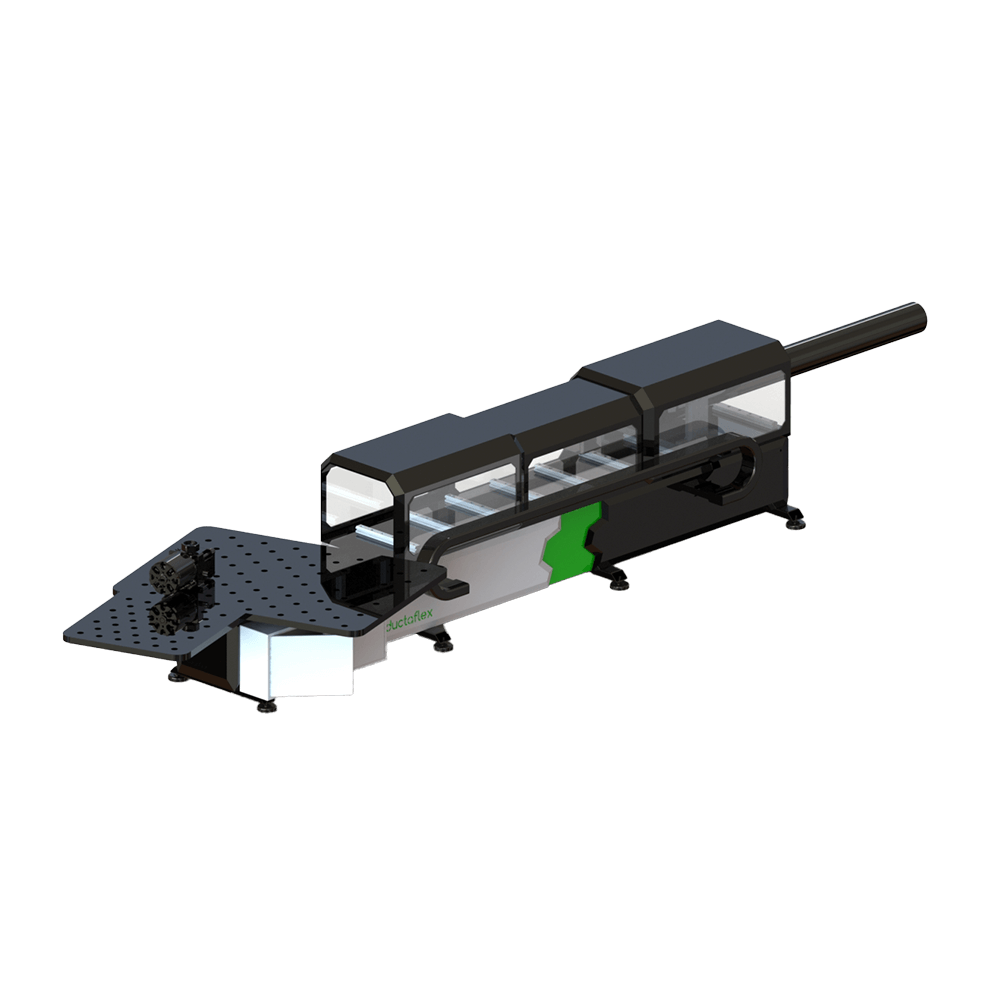

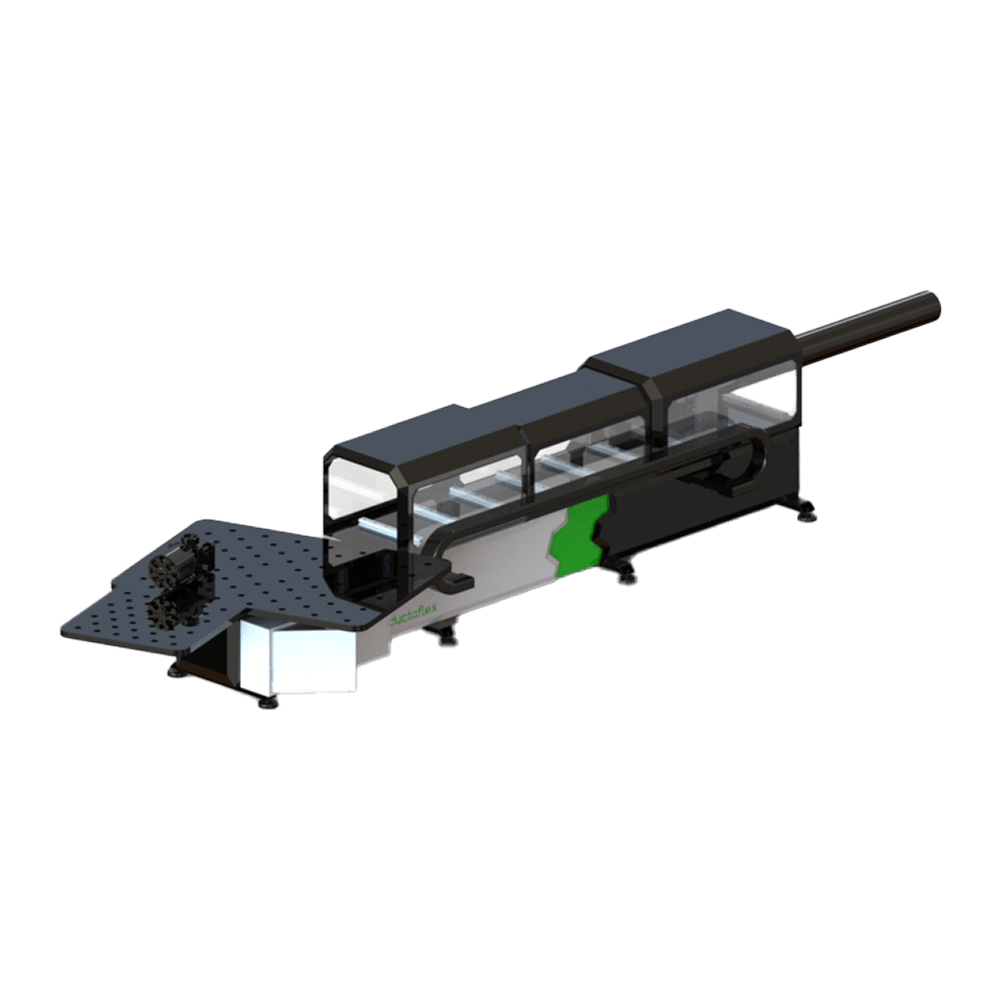

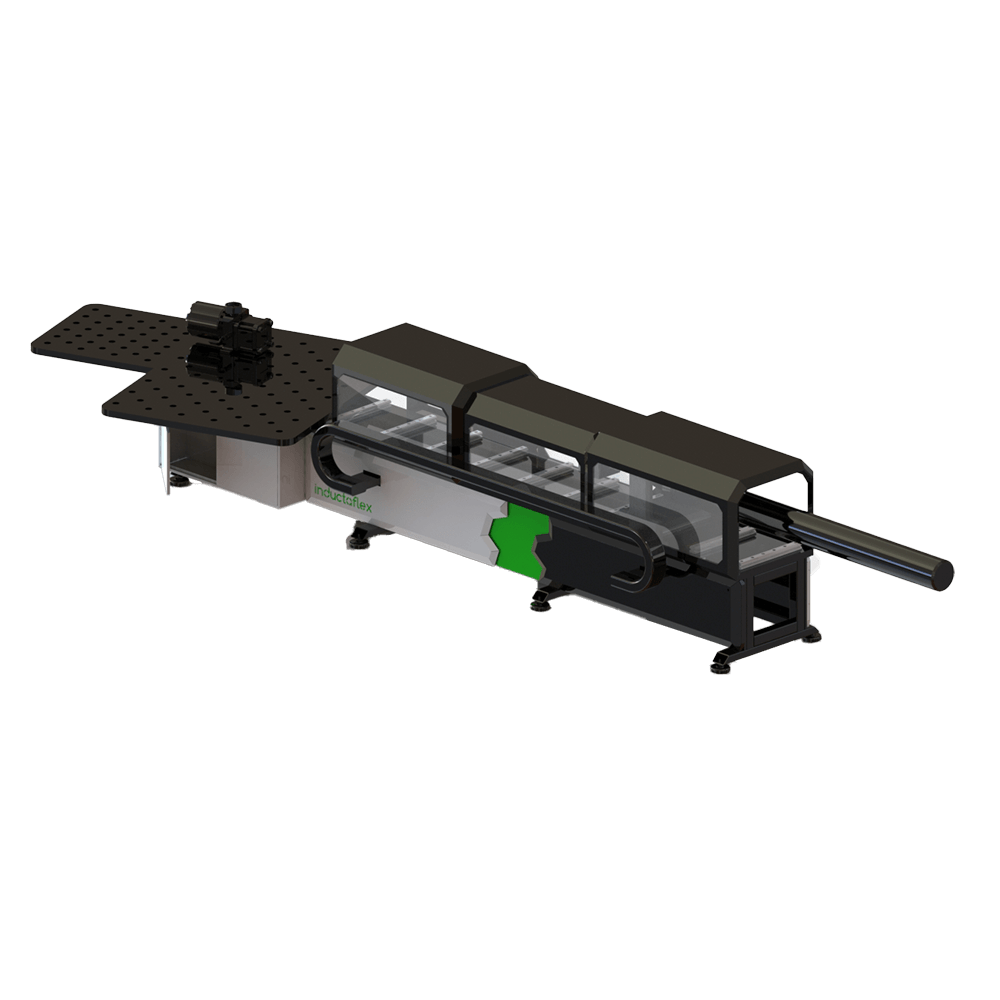

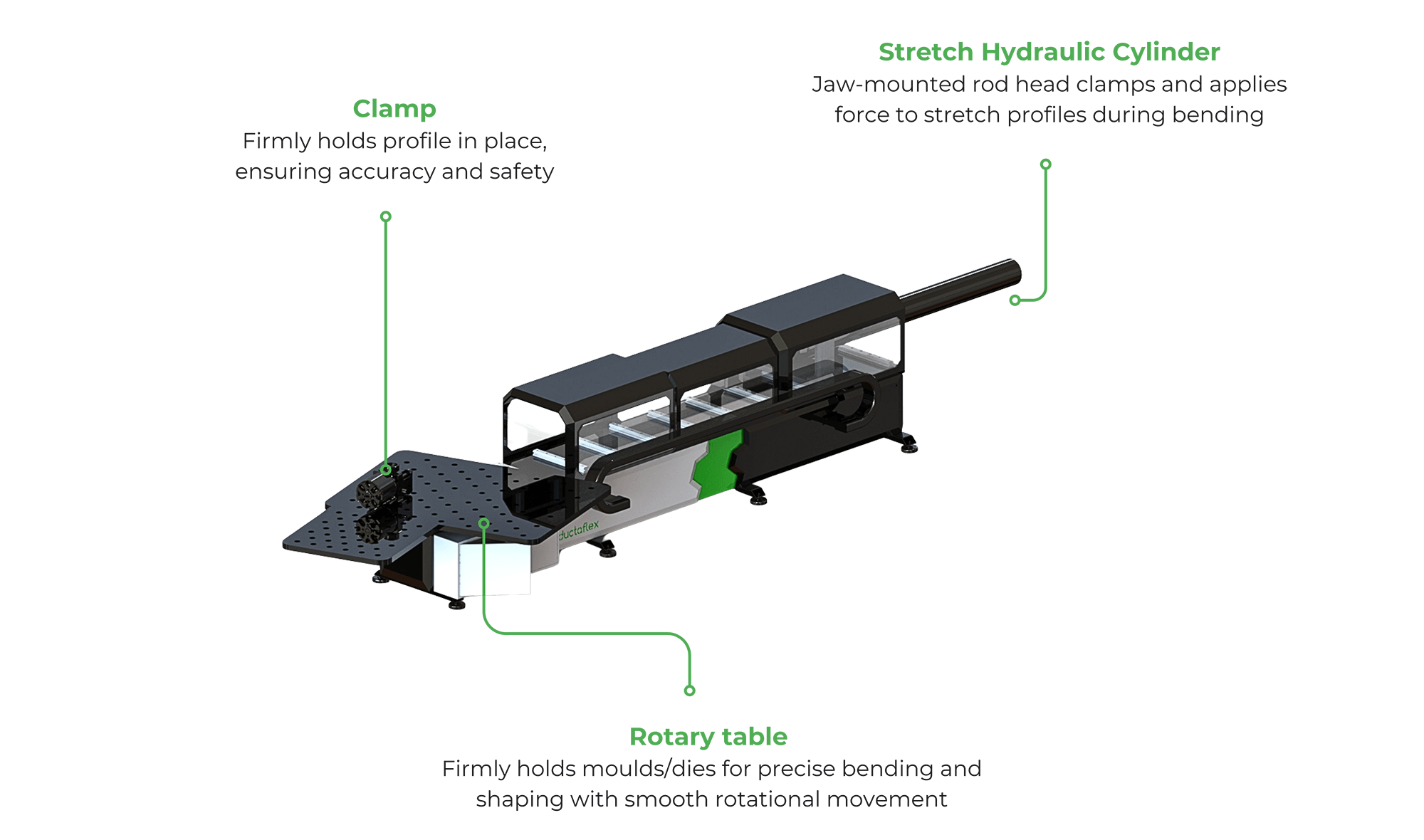

Rotary Stretch former - RS-15

Best Possible and Unique bending and stretch forming for Structural Applications
Lowest Tool Cost Compared to Other Machines
Easy to Operate with Minimal Training

Bending force X-axis: 15T
Drive of twist axis: Hybrid, servo hydraulic, clean, low noise – 70% energy savings
Bend length: 3000mm
Maximum part width: 100 x 100
Machine control: Siemens HMI, Inductaflex Control
KW: 2.4kW
Power supply connection: 3 x 400 / 480v, 50 / 60Hz
Length / Width: 6000 x 3000mm
Weight: 9000kg
Transportability of the machine: 6000 x 3000mm
Hydraulic oil volume: 60L
Minimum radius: 2.5D to 50metres

optional Extra

	RS-15	RS-25	RS-35	RS-50	RS-75
X-axis
Bending force X-axis	15T	25T	35T	50T	75T
Drive of twist axis	Hybrid, servo hydraulic, clean, low noise – 70% energy savings	Hybrid, servo hydraulic, clean, low noise – 70% energy savings	Hybrid, servo hydraulic, clean, low noise – 70% energy savings	Hybrid, servo hydraulic, clean, low noise – 70% energy savings	Hybrid, servo hydraulic, clean, low noise – 70% energy savings
Bend length	3000mm	4000mm	4000mm	5000mm	6000mm
Maximum part width	100×100	120×120	150×150	200×200	300×300
Control / Software:
Machine control	Siemens HMI, Inductaflex Control	Siemens HMI, Inductaflex Control	Siemens HMI, Inductaflex Control	Inteligent CNC, reverse bending	Siemens HMI, Inductaflex Control
General technical data
KW	2.4kW	3kW	4.4kW	4.7kW	12.3kW
Power supply connection	3 x 400 / 480v, 50 / 60Hz
Length / width / height	6000 x 3000mm	7000 x 3500mm	7000 x 3500mm	9000 x 4500mm	10000 x 5000mm
Weight	9000kg	12000kg	15000kg	25000kg	45000kg
Transportability of the machine	Pallet truck	Pallet truck	Fork truck	Fork truck	Crane
Hydraulic oil volume	60L	100L	180L	240L	320L
Profile capacity
Minimum radius	2.5D to 50metres
