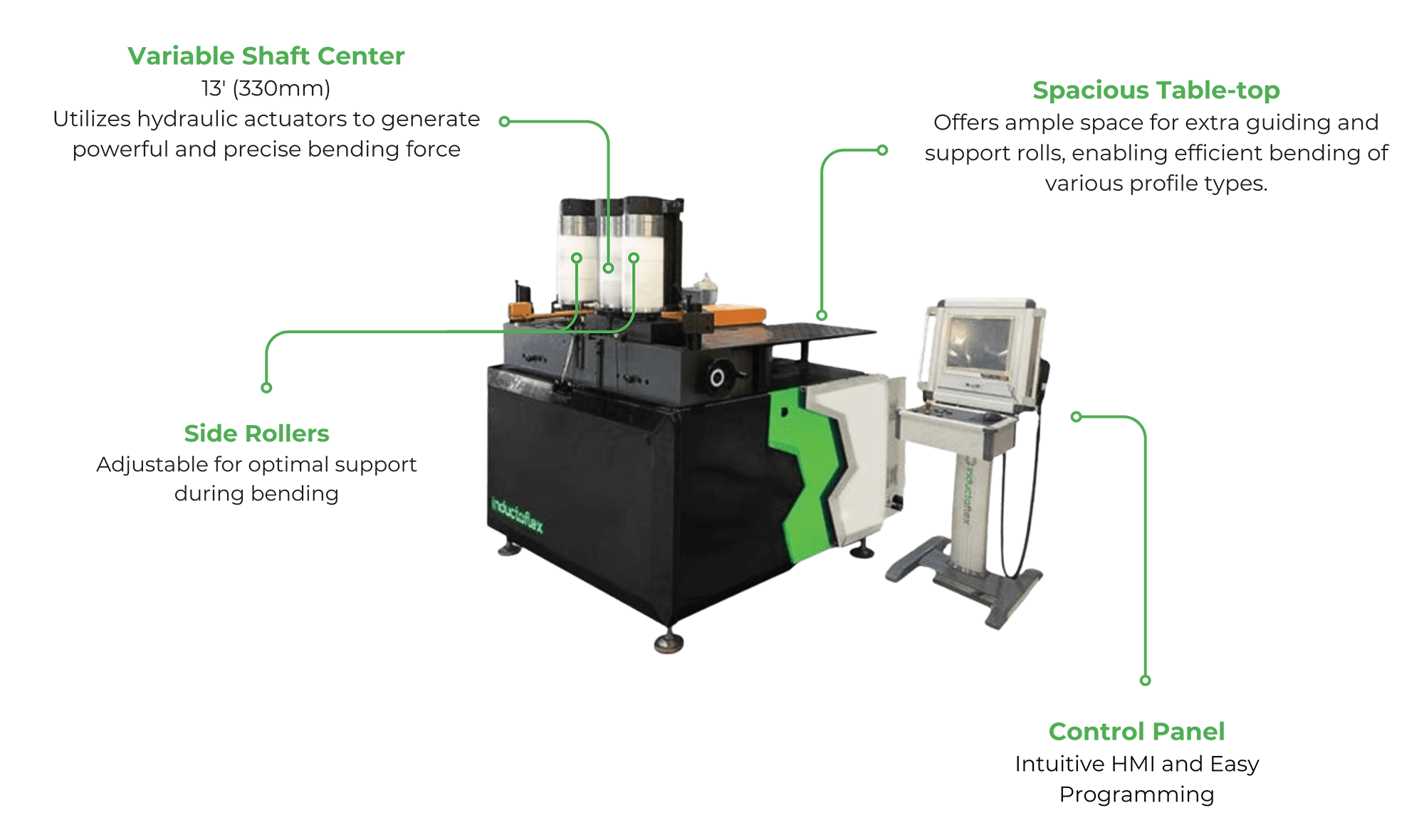

Standard features

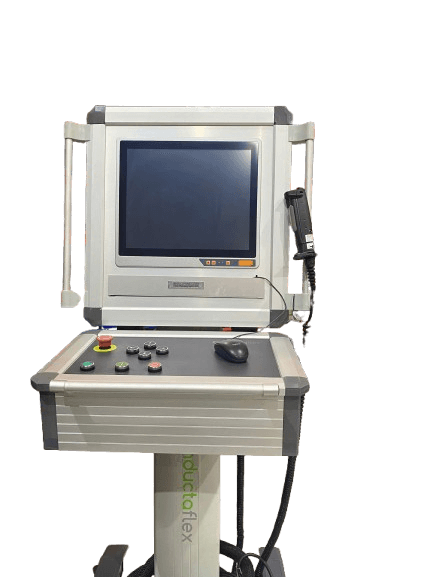

Intelligent CNC
- It allows you to upload drawings directly into the system, supporting file formats like .dxf, .dwg.
- The CNC system’s advanced algorithms and automation enable precise and error-free bending, ensuring seamless execution of complex profiles.
Safety handle control
- Ensure that the machine operates only when the operator performs
- It prevents the machine from starting unintentionally, such as when the operator accidentally touches buttons or control levers.
- This handle may also integrate with other sensors to immediately stop the machine if any dangerous or incorrect operation is detected

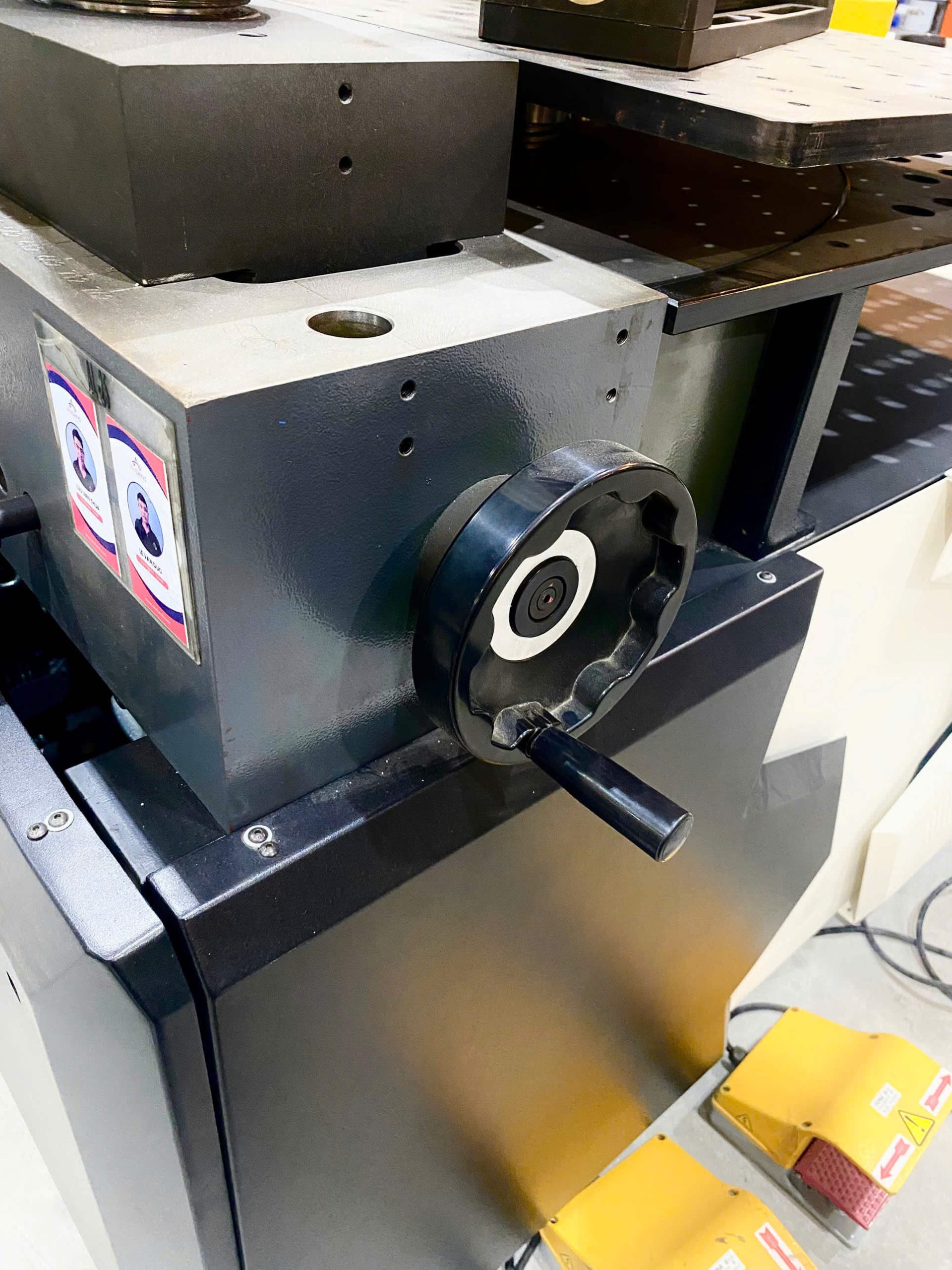

manual adjustment lever
- Move the roller shaft
- Easy to use for quick adjustments or when not using automatic mode.
PEDAL
- Control horizontal/vertical or up/down movement
- Safety for operator
Hydraulic shaft
- The hydraulic shaft transfers power to the rollers, controlling bending force.
- Enables precise adjustment of bending force on the rollers.

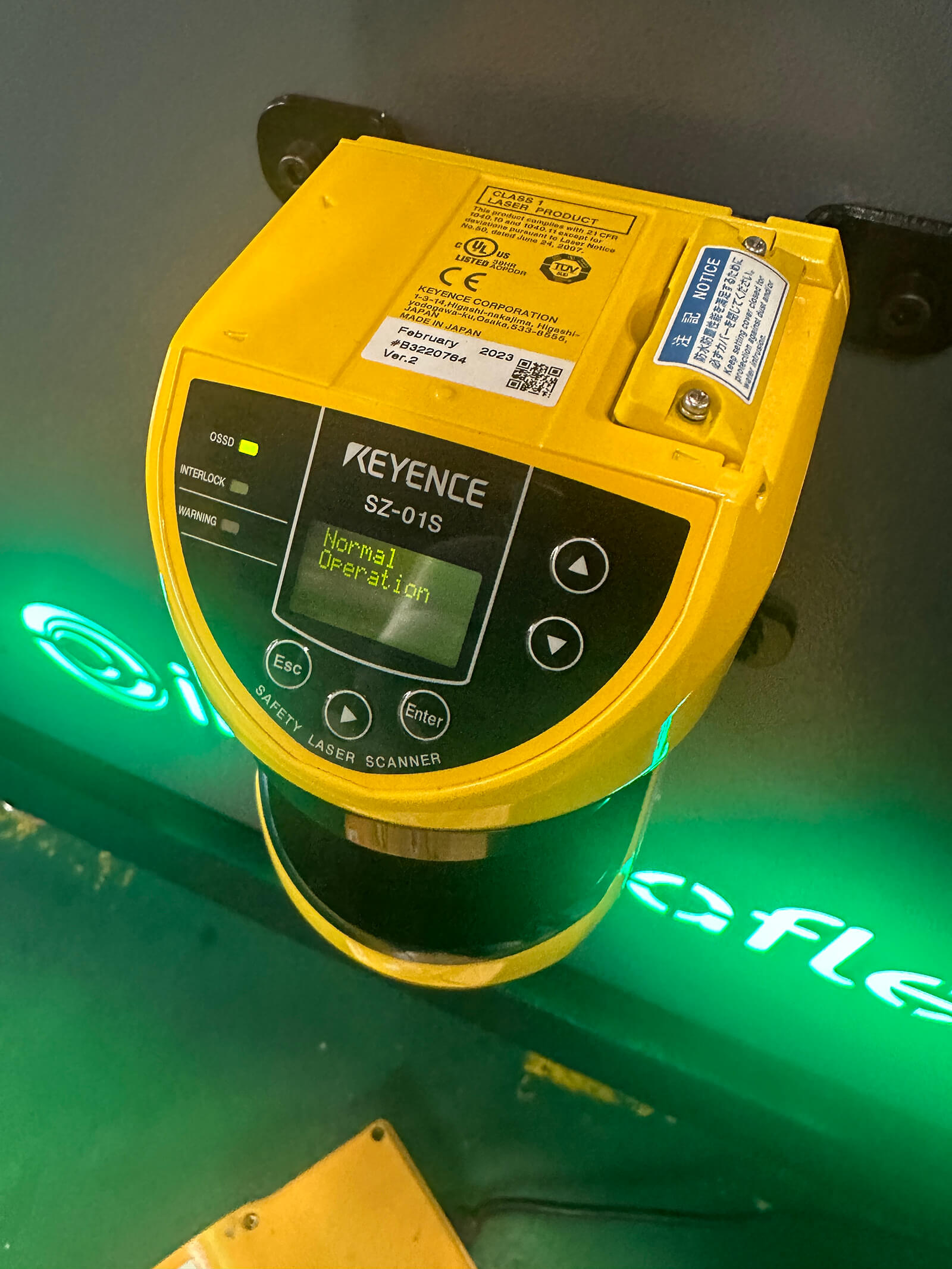

safety scanner
- Control of safety zones during bending machine operation, protecting the operator.
- Hazard Detection and automatic machine stop.

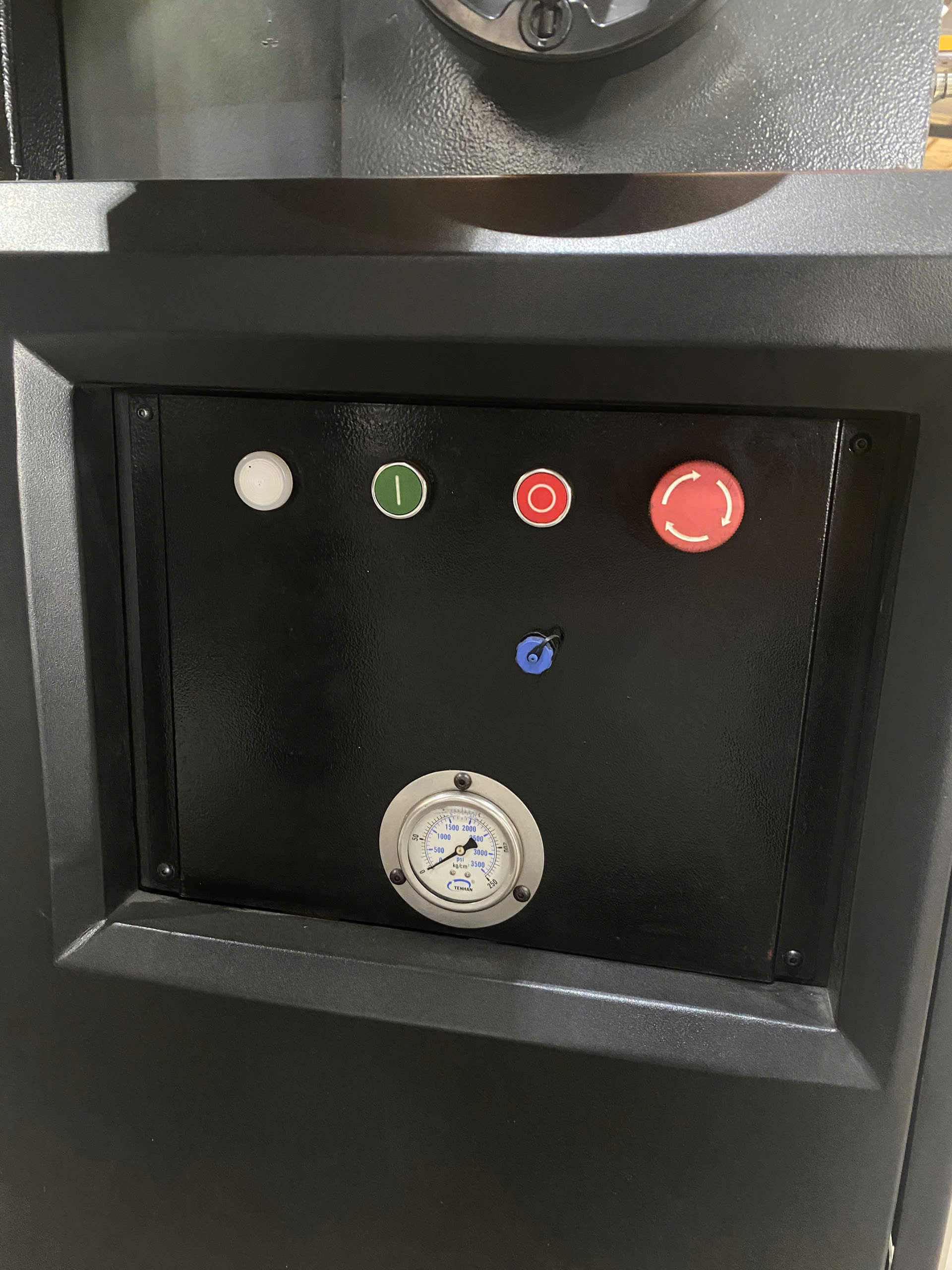

hydraulic pressure gauge
- Monitor and maintain stable pressure in the hydraulic system.
SENSOR

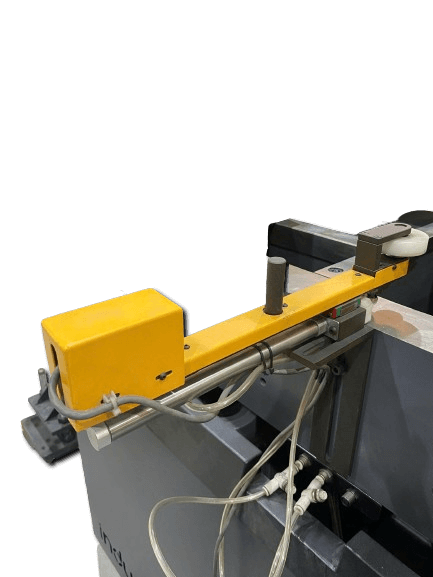

- Sensors help identify the material’s position.
ENCODER
- Accurate Position Tracking
- Bend Angle Control
- Ensures Consistency
- Automation Integration

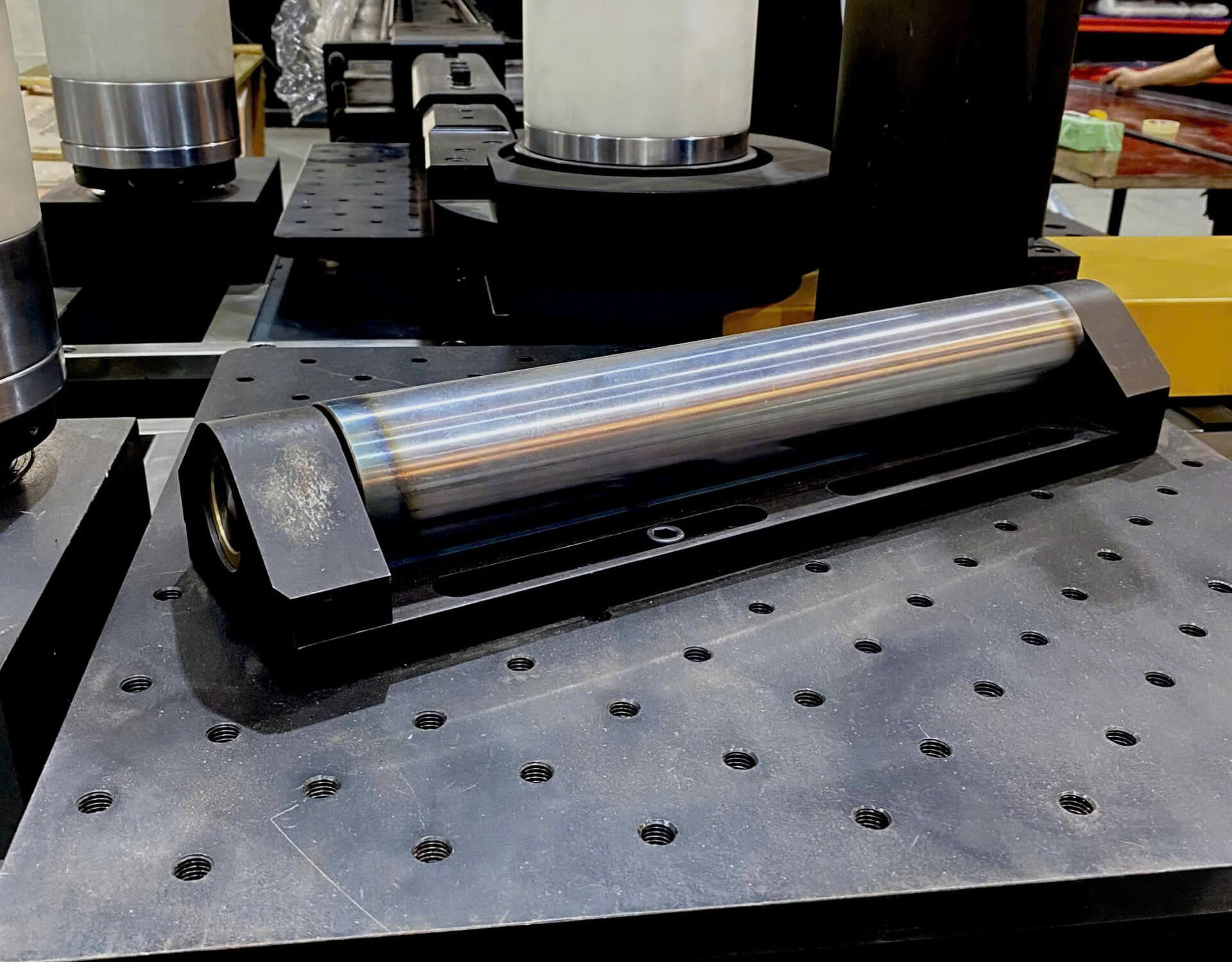

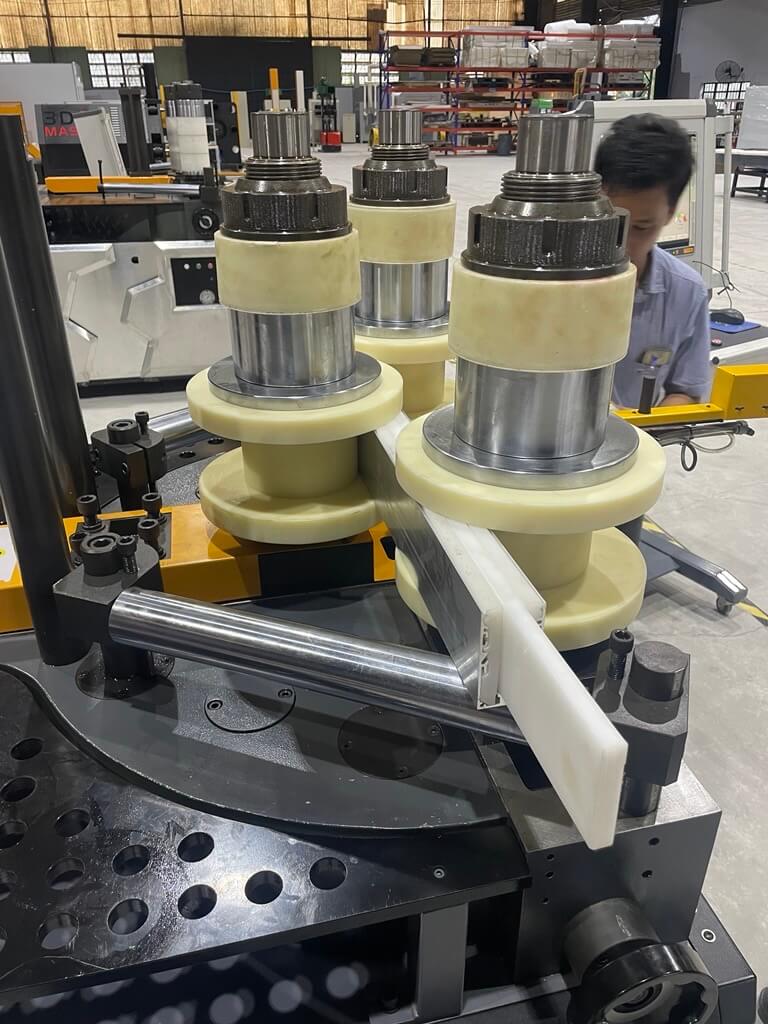

Support Roller
- Stabilizes material, reduces friction, and improves bending accuracy

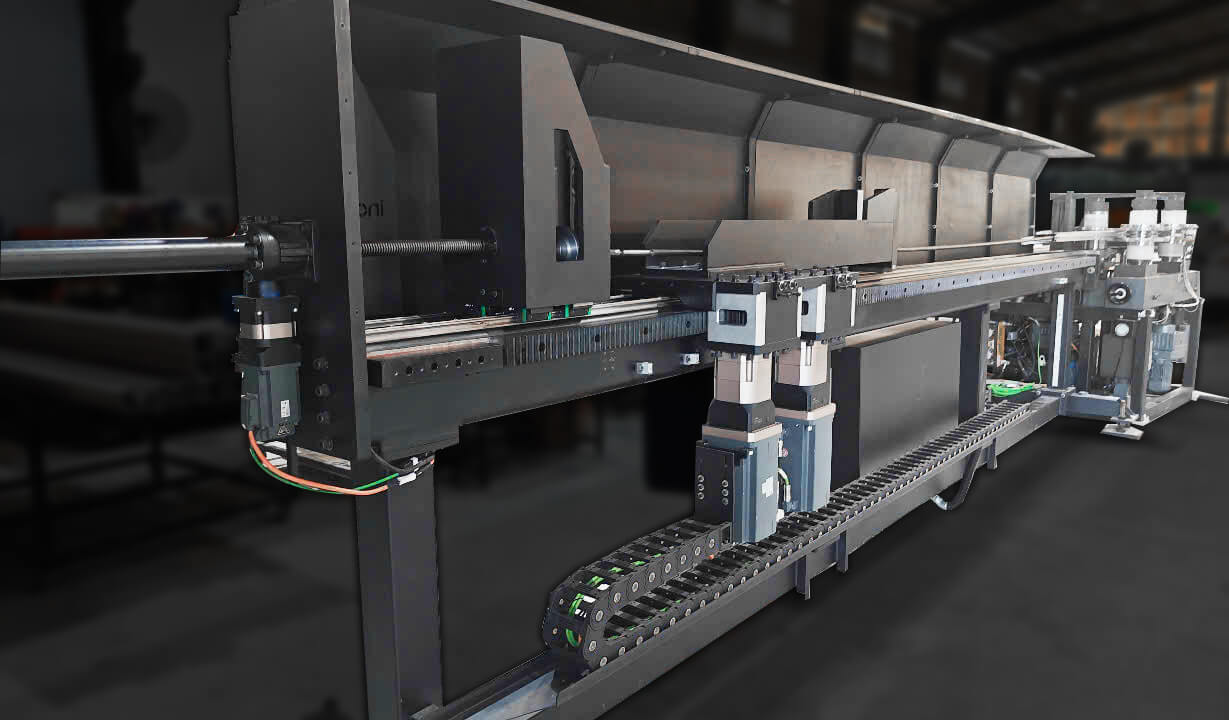

Optional extras
SUITABLE MARKETS / BENDING ABILITY

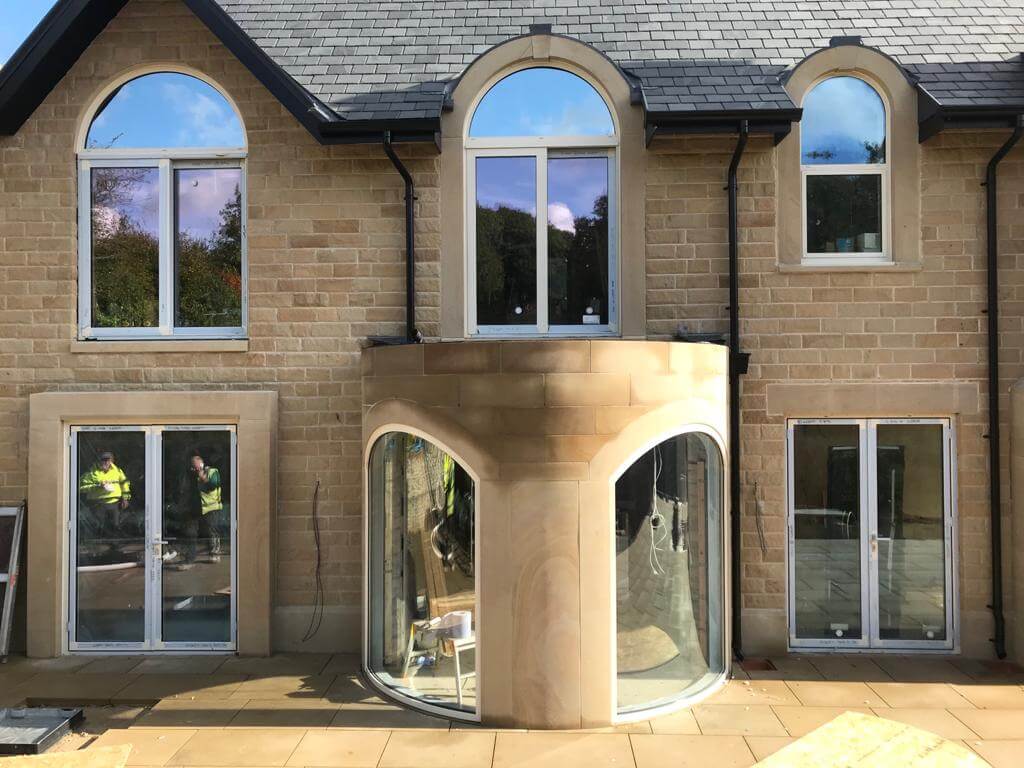

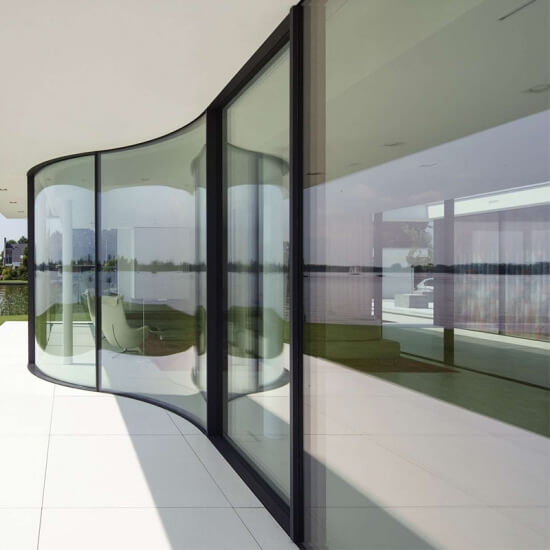

- Curtain wall profiles
- Tall profiles up to 280mm (11″)
- Long length profiles

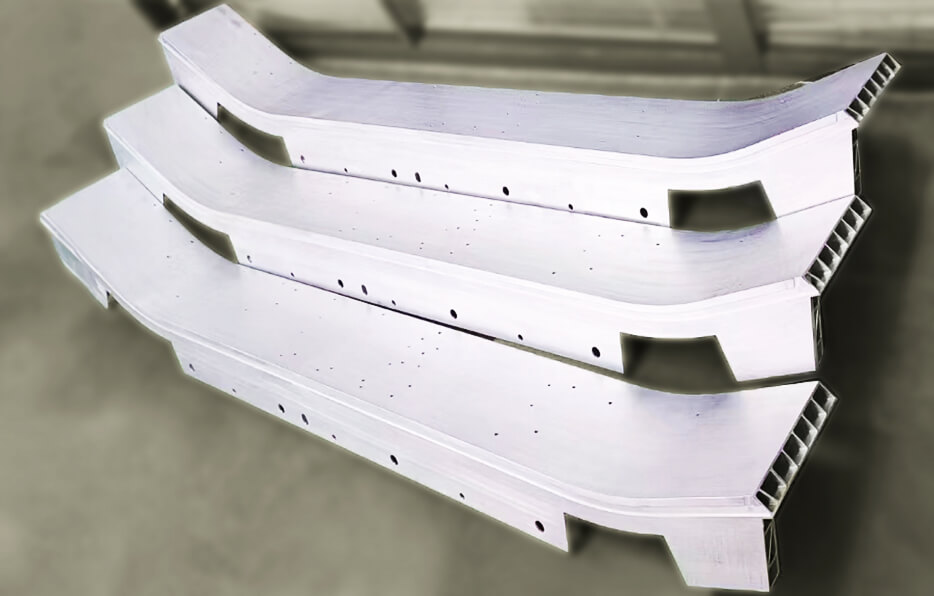

- Heavy duty bends

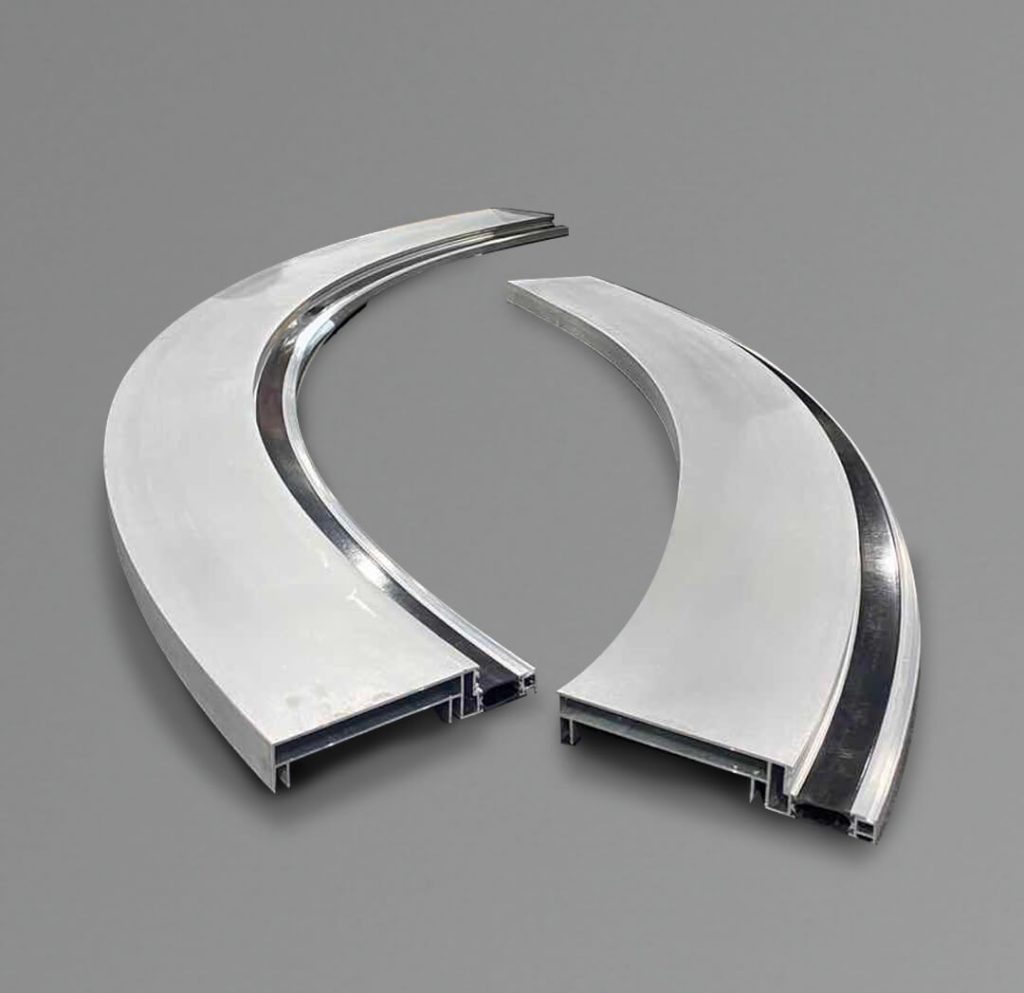

- 2D Multiple radius
- “S” Bending of profiles
- Bending to end function
INDUCTAFLEX ROLLER INFORMATION
|
|
AL-12 V |
AL-15 H |
AL-25 H |
AL-40 H |
L-70 H |
|
2D / 3D versions |
2D and 3D |
2D and 3D |
2D and 3D |
2D and 3D |
2D and 3D |
|
X-axis |
|||||
|
Bending force X-axis |
12T |
15T |
25T |
40T |
70T |
|
Drive of X-axis |
Hybrid, servo hydraulic, clean, low noise – 70% energy savings |
Hybrid, servo hydraulic, clean, low noise – 70% energy savings |
Hybrid, servo hydraulic, clean, low noise – 70% energy savings |
Hybrid, servo hydraulic, clean, low noise – 70% energy savings |
Hybrid, servo hydraulic, clean, low noise – 70% energy savings |
|
Stroke of Z/U-axis |
100mm |
150mm |
150mm |
150mm |
150mm |
|
Maximum part width |
150 |
200 |
300 |
300 |
300 |
|
Positioning accuracy of the X-axis |
0.01mm |
0.01mm |
0.01mm |
0.01mm |
0.01mm |
|
Y-axis |
|||||
|

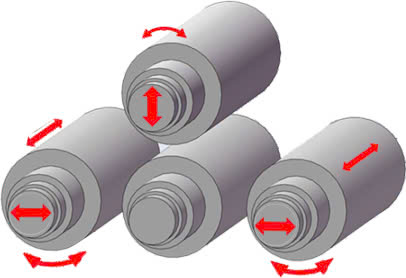

3 individual driven rollers speed |
1-20rpm |
1-14rpm |
1-14rpm |
1-10rpm |
1-10rpm |
|
Front shaft distance (roller spacing) |
180 – 390mm |
258-518mm |
362-762mm |
410-1510mm |
800-1600mm |
|
Shaft diameter |
50mm |
80mm |
105mm |
105mm |
130mm |
|
Shaft height |
180mm |
250mm |
330mm |
450mm |
600mm |
|
Total torque |
1700Nm |
2470Nm |
4847Nm |
7500Nm |
11000Nm |
|
Max Torque per shaft |
850Nm |
823Nm |
1615Nm |
3500Nm |
45000Nm |
|
Yaxis travel distance |
165mm |
255mm |
400mm |
500mm |
650mm |
|
Hydraulic drive |
2.2kW |
3.7kW |
5.5kW |
5.5kW |
5.5kW |
|
Shaft drive; individually driven! |
Servo electric, clean, lownoise – 70% energy savings |
Servo electric, clean, lownoise – 70% energy savings |
Servo electric, clean, lownoise – 70% energy savings |
Hybrid, servo hydraulic, clean, low noise – 70% energy saving |
Hybrid, servo hydraulic, clean, low noise – 70% energy saving |
|
Shaft supports |
Standard |
Standard |
Standard |
Standard |
Standard, optional servo close |
|
Z-axis |
|||||
|
Z-axis |
Manual standard roller |
Manual standard roller |
Manual standard roller |
Standard powered |
Standard powered |
|
Z axis powered option |
Electric 1000 kg |
Electric 2000 kg |
Electric 4000 kg |
Electric 5000 kg |
Electric 7000 kg |
|
Control / Software: |
|||||
|
Machine control |
Inteligent CNC, reverse bending |
Inteligent CNC, reverse bending |
Inteligent CNC, reverse bending |
Inteligent CNC, reverse bending |
Inteligent CNC, reverse bending |
|
Operating system |
Windows |
Windows |
Windows |
Windows |
Windows |
|
General technical data |
|||||
|
KW |
2.4kW |
3kW |
4.4kW |
4.7kW |
12.3kW |
|
Power supply connection |
3 x 400VAC, 50/60Hz, 17A |
380V, 50Hz, 17A |
380V, 50Hz,20A |
380V, 50Hz,39A |
380V, 50Hz,50A |
|
Length / width / height |
1731x674x1670mm |
1249x1134x1432mm |
2037x1300x2148mm |
2170x2075x1800mm |
2520x2475x2148mm |
|
Weight |
1000kg (2D) 1100kg (3D) |
1800kg |
2600kg |
3000kg |
6000kg |
|
Transportability of the machine |
Pallet truck |
Pallet truck |
Fork truck |
Fork truck |
Crane |
|
Hydraulic oil volume |
60L |
100L |
180L |
240L |
320L |
|
Prole capacity |
|||||
|
Maximum prole siz |
60 x 60 x 3mm |
80 x 80 x 3mm |
100x 100 x3 mm |
120x 120 x 3mm |
120x 120 x 3mm |
|
Minimum radius |
T x 5mm |
T x 5mm |
T x 5mm |
T x 5mm |
T x 5mm |
