ST-20
20T STRETCH FORMER
- 12T Weight
ABOUT ST-20

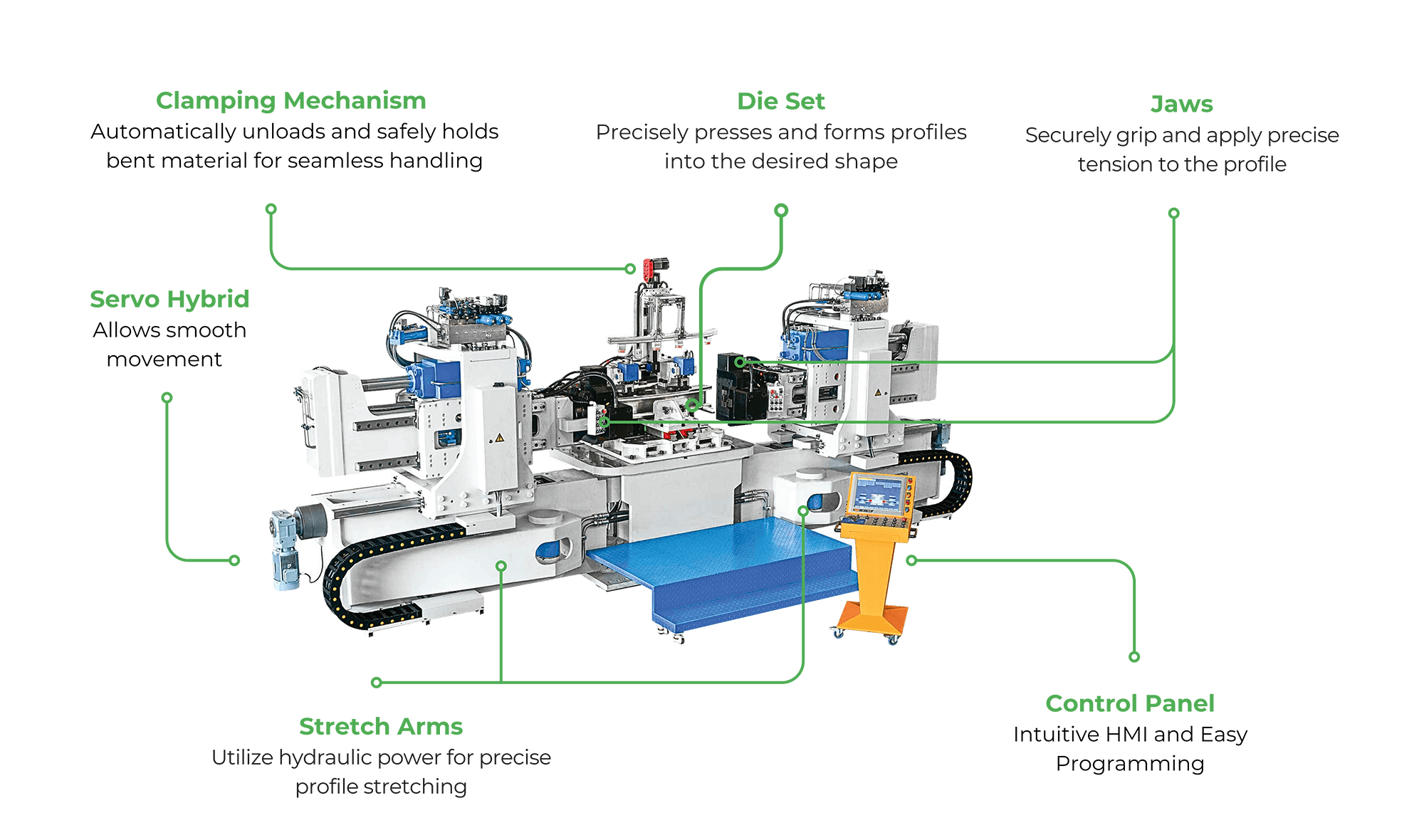

20T STRETCH FORMER - ST-20
Machine Technical Spec
- Stretching power: 200kN
- Max distance between jaws: 4500mm
- Mould platform height: 925mm
- Mould platform dimensions: 1830x1270mm
- Stretch cylinder swing angle: ±30°
- Swing arm angle: 10° Forward, 90° Backward
- Swing arm precision: ±0.1°
- Minimum bending radius: 205mm
- Servo power: 31kW
- Weight: 12T
