ST-55

    55T STRETCH FORMER

    • 19T Weight
    • 43kW Servo power
    • 550kN Stretching power

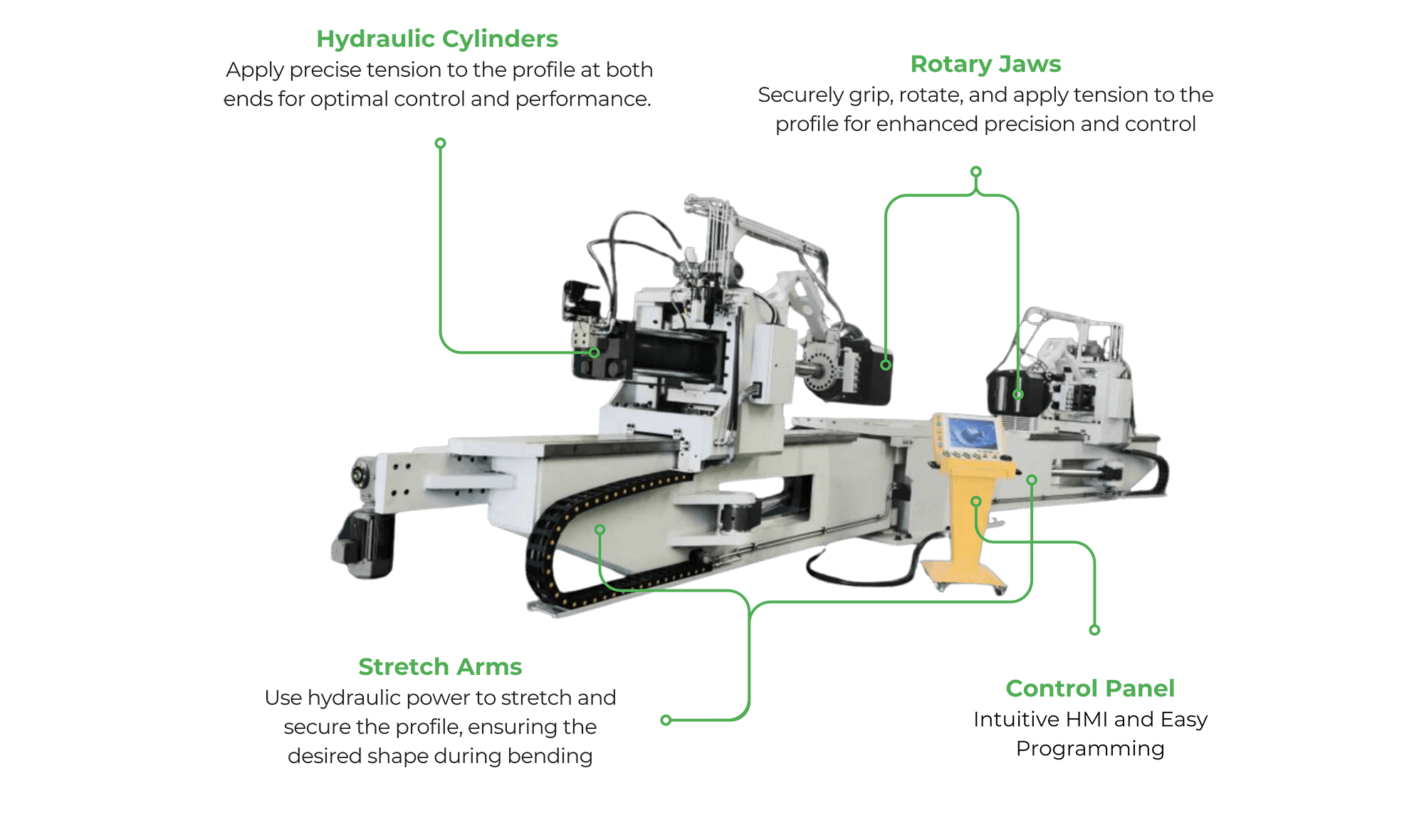

    image-features

    ABOUT ST-55

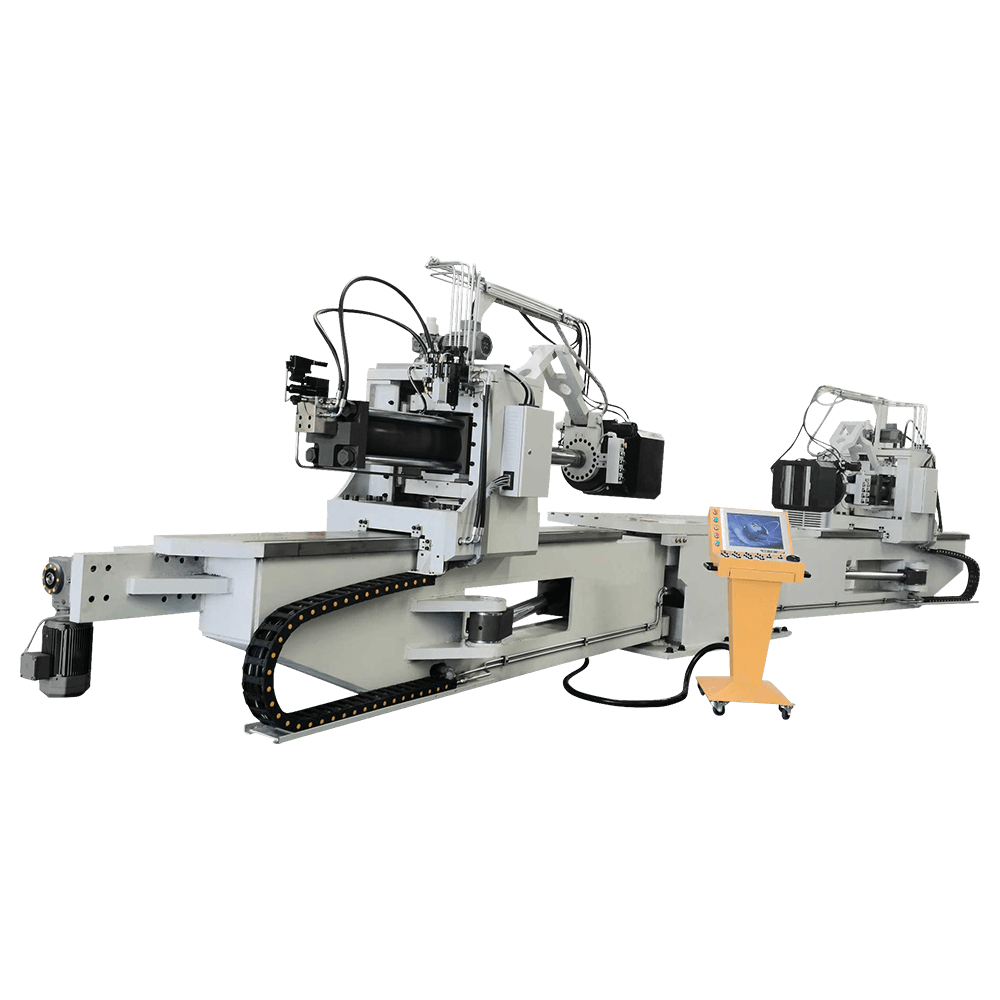

    55T STRETCH FORMER - ST-55

    • Stretching power: 550kN
    • Max distance between jaws: 6500mm
    • Mould platform height: 980mm
    • Mould platform dimensions: 2360x1285mm
    • Stretch cylinder swing angle: ±30°
    • Swing arm angle: 10° Forward, 90° Backward
    • Swing arm precision: ±0.1°
    • Minimum bending radius: 405mm
    • Servo power: 43kW
    • Weight: 19T
    Weight 6760727522 kg
