ABOUT AL-X25T

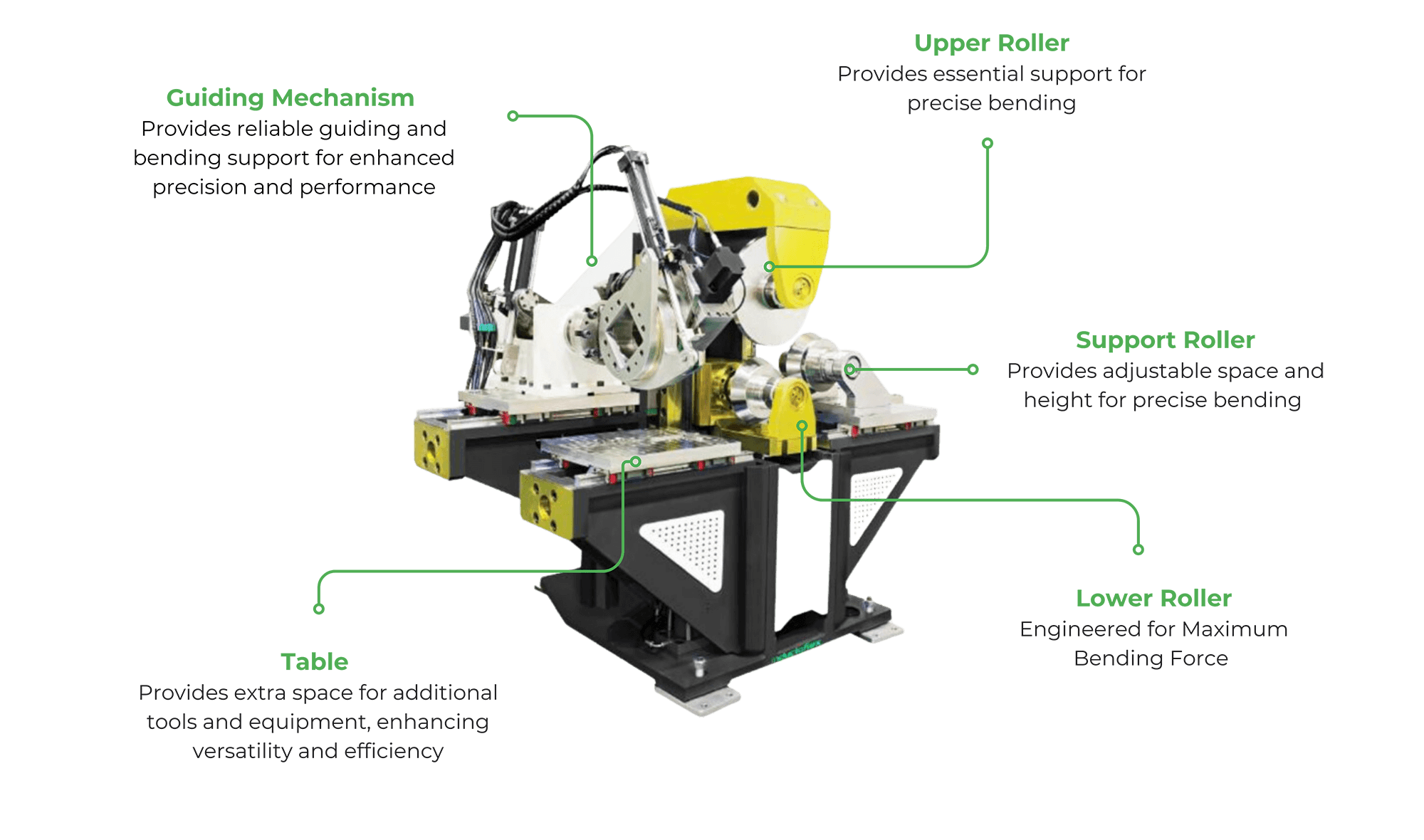

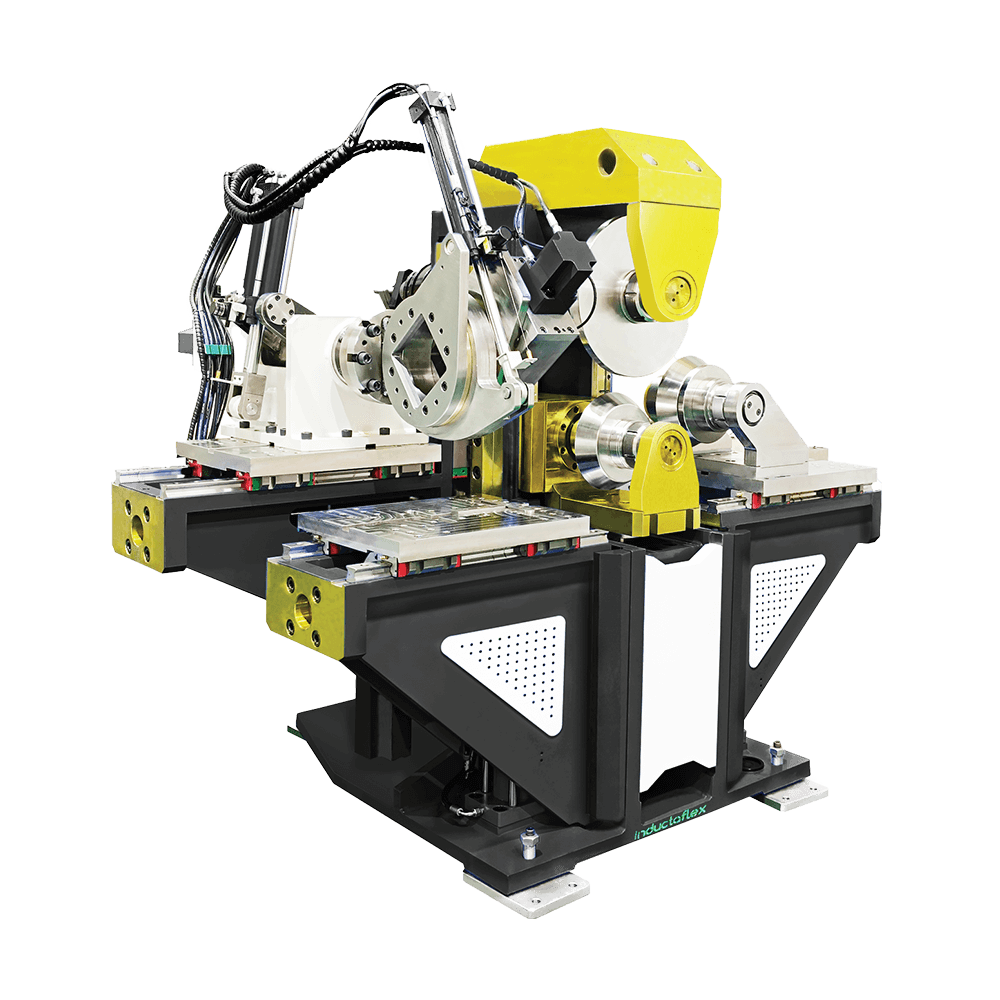

3D PROFILE ROLL BENDING MACHINE - AL-X25T

Hydraulic Bending Power: 25T
X4 and X5 Revolution: 1-10rpm, Steplessly changed
Axis Repositioning Tolerance: 0.01mm
X6 and X7 Stroke: 80mm
X8 and X9 Stroke: 150mm
X8 and X9 Swing Angle: ±15°
X10 to X14 : Inward and backward stroke 60mm, Left and right movment stroke 150mm, Swing angle ±90°, Rotate angel ±360°, Lifting stroke150mm
Shaft Diameter: Upper 110mm, Lower 80mm.
Shaft Length: 220mm
Upper Roller Torque: Max. 5000N.m
Lower Roller Torque: Max. 3500N.m
Weight: 3500Kg
