ST-120

    120T STRETCH FORMER

    • 35T Weight
    image-features

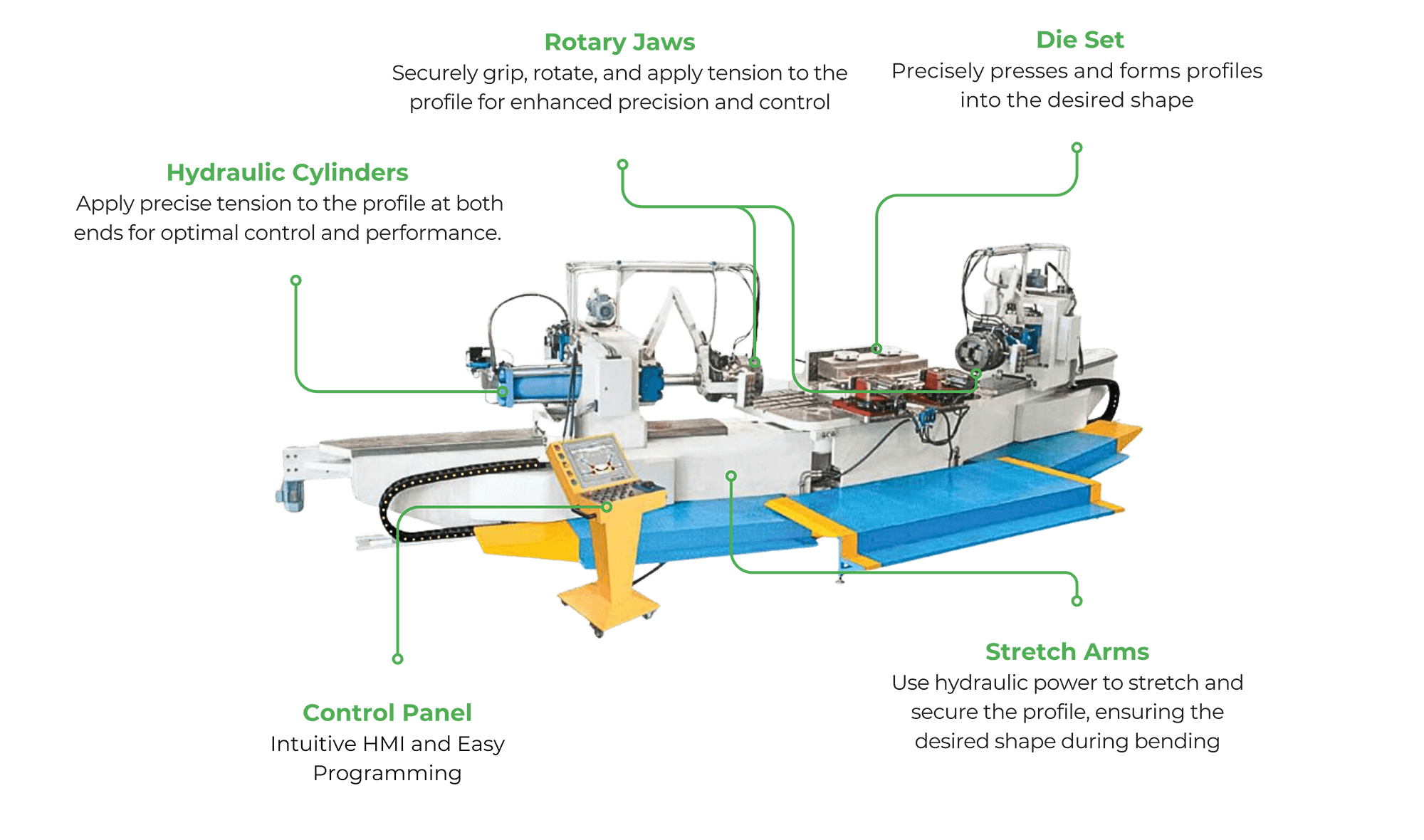

    ABOUT ST-120

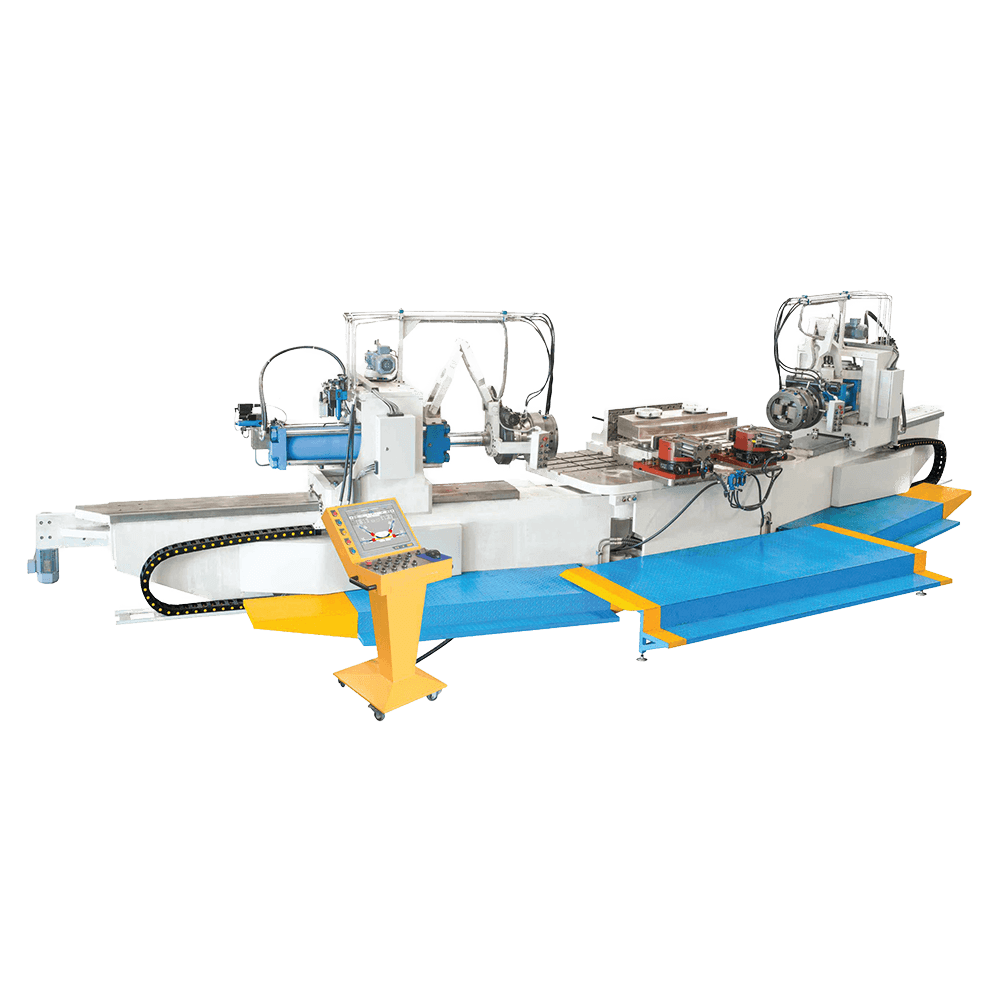

    120T STRETCH FORMER - ST-120

    • Stretching power: 1200kN
    • Max distance between jaws: 6500mm
    • Mould platform height: 1050mm
    • Mould platform dimensions: 2500x1350mm
    • Stretch cylinder swing angle: ±30°
    • Swing arm angle: 10° Forward, 90° Backward
    • Swing arm precision: ±0.1°
    • Minimum bending radius: 500mm
    • Servo power: 70kW
    • Weight: 35T
    Weight 6760727522 kg
